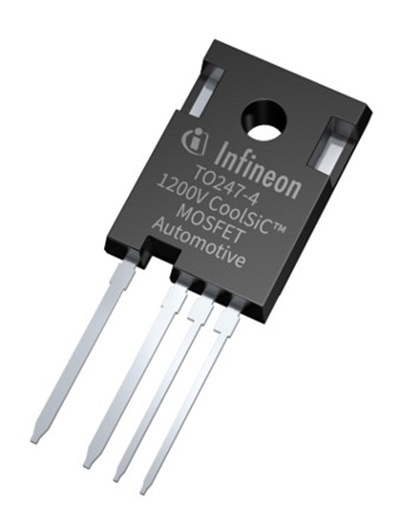

Infineon AIM SiC N-Channel MOSFET, 38 A, 1200 V, 4-Pin PG-TO247-4 AIMZH120R060M1TXKSA1

AIMZH120R060M1TXKSA1 Infineon AIM SiC N-Channel MOSFET, 38 A, 1200 V, 4-Pin PG-TO247-4
AIMZH120R060M1TXKSA1 Infineon AIM SiC N-Channel MOSFET, 38 A, 1200 V, 4-Pin PG-TO247-4
Infineon

Product Information

Automotive Standard:
AEC-Q101, AEC-Q100
Maximum Power Dissipation Pd:
197W
Maximum Drain Source Voltage Vds:
1200V
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
23 V
Series:
CoolSiC
Channel Type:
Type N
Typical Gate Charge Qg @ Vgs:
32nC
Package Type:
PG-TO-247-4-STD-NT6.7
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
75mΩ
Standards/Approvals:
RoHS
Maximum Continuous Drain Current Id:
38A
Product Type:
MOSFET
Maximum Operating Temperature:
175°C
Pin Count:
4
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is AIM SiC N-Channel MOSFET 38 A 1200 V 4-Pin PG-TO247-4 manufactured by Infineon. The manufacturer part number is AIMZH120R060M1TXKSA1. The product complies with automotive standard - aec-q101, aec-q100. The product carries enhancement channel mode. The product coolsic, is a highly preferred choice for users. The product is available in [Cannel Type] channel. The package is a sort of pg-to-247-4-std-nt6.7. Whereas, the minimum operating temperature of the product is -55°c. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. It contains 4 pins. It has a through hole type mount .

pdf icon
Datasheet - AIMZH120R060M1TXKSA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship AIMZH120R060M1TXKSA1 Internationally to many countries around the world.
Yes. You can also search AIMZH120R060M1TXKSA1 on website for other similar products.
We accept all major payment methods for all products including ET28407523. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET28407523 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET28407523.
You can order Infineon brand products with AIMZH120R060M1TXKSA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon AIM SiC N-Channel MOSFET, 38 A, 1200 V, 4-Pin PG-TO247-4 AIMZH120R060M1TXKSA1. You can also check on our website or by contacting our customer support team for further order details on Infineon AIM SiC N-Channel MOSFET, 38 A, 1200 V, 4-Pin PG-TO247-4 AIMZH120R060M1TXKSA1.
