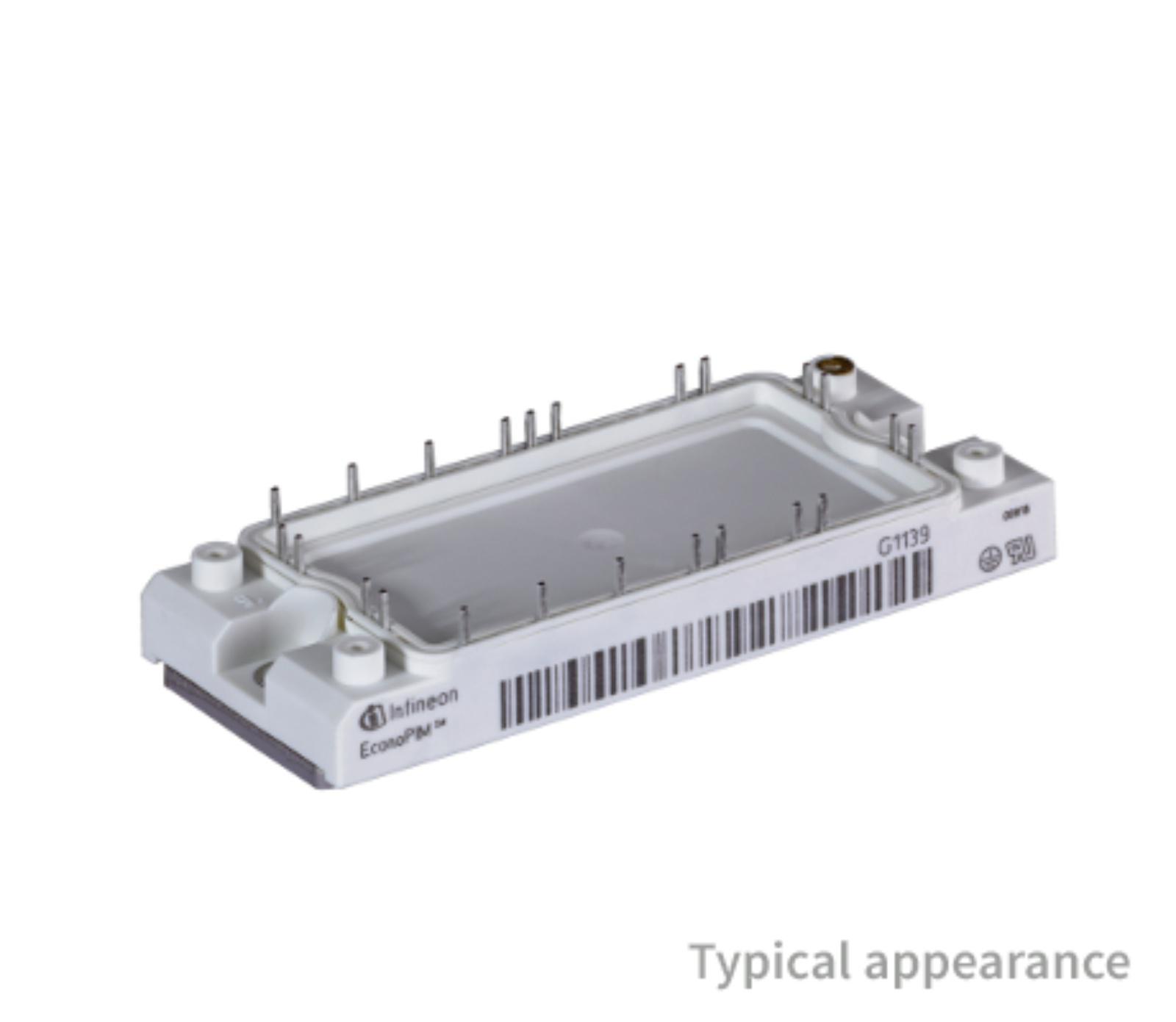

Infineon FP75R12N2T7BPSA2

Enrgtech Part No: ET26085970
|
Manufacturer Part No:
FP75R12N2T7BPSA2
|
Manufacturer: Infineon

Product Information

Mounting Type:

Panel Mount

Maximum Power Dissipation:

20 mW

Maximum Collector Emitter Voltage:

1200 V

Number of Transistors:

Channel Type:

Maximum Continuous Collector Current:

75 A

Maximum Gate Emitter Voltage:

±20V

Configuration:

Common Emitter

Pin Count:

Checking for live stock

The Infineon FP75R12N2T7BPSA2 is a high-performance three-phase IGBT module built for robust power electronics in the UK. Packaged in the durable EconoPIM 2 chassis and rated at 1.2 kV with a 75 A continuous current capacity, it integrates TRENCHSTOP IGBT7 technology for low saturation voltage (~1.55 V @ 75 A) and superior switching efficiency. Featuring onboard three-phase bridge rectification plus brake chopper and NTC temperature sensing, it combines reliability with simplified system design.

Key Reasons to Buy the Infineon 3-Phase IGBT Module

Its integrated rectifier, brake-chopper diode, and thermal sensor reduce component count and PCB complexity. Built using advanced TrenchStop IGBT7 technology, it provides low conduction losses and lower switching stress. The module’s high power density and industrial-grade thermal tolerance offer UK engineers a compact, reliable, and energy-efficient solution that withstands heavy-load and high-temperature conditions without performance degradation.

Product Crucial Features and Benefits

Ideal for high-voltage UK power systems.
Minimises conduction losses and improves efficiency.
Integrated rectifier & brake-chopper simplifies design and reduces external components.
NTC temperature sensor, enables advanced thermal monitoring and protects against overheating.
EconoPIM 2 module packaging, compact, high power density, and reliable chassis mounting for UK systems.

Versatility in Applications

Three-phase industrial motor controls and drives
Renewable energy inverters, including solar and wind systems
UPS/power conditioning systems requiring compact, high-voltage switching
EV charging stations and heavy-duty battery systems
Compact industrial power converters for UK manufacturing and automation equipment
