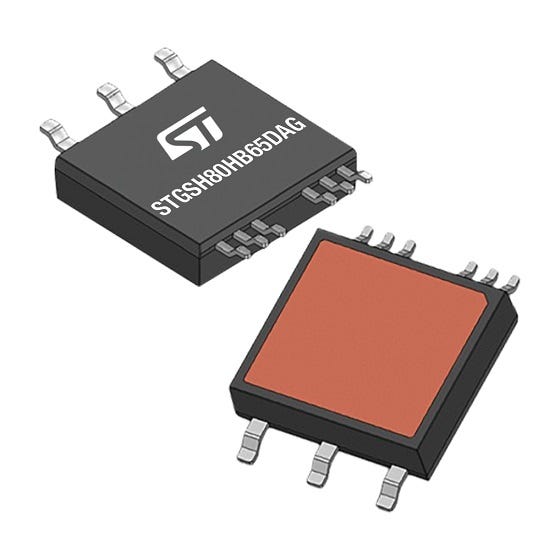

STMicroelectronics STGSH80HB65DAG
Product Information
Current - Collector (Ic) (Max):
83 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.1V @ 15V, 80A
Voltage - Collector Emitter Breakdown (Max):
650 V
Operating Temperature:
-55°C ~ 175°C (TJ)
Input Capacitance (Cies) @ Vce:
10450 pF @ 25 V
Package / Case:
9-PowerSMD
Input:
Standard
NTC Thermistor:
No
REACH Status:
REACH Affected
Configuration:
Half Bridge
Package:
Bulk
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
18 Weeks
IGBT Type:
-
Mounting Type:
Surface Mount
Series:
HB
Supplier Device Package:
9-ACEPACK SMIT
Power - Max:
250 W
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search STGSH80HB65DAG on website for other similar products.
We accept all major payment methods for all products including ET25872593. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with STGSH80HB65DAG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBT Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics STGSH80HB65DAG. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics STGSH80HB65DAG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET25872593 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET25872593.
Yes. We ship STGSH80HB65DAG Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is STGSH80HB65DAG. The maximum collector current includes 83 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.1v @ 15v, 80a. The maximum collector emitter breakdown voltage of the product is 650 v. The product has -55°c ~ 175°c (tj) operating temperature range. It holds 10450 pf @ 25 v of input capacitance. Moreover, the product comes in 9-powersmd. Its input values include standard. NTC Thermistor - no. In addition, it is reach affected. The product is available in half bridge configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 3 (168 hours). It has a long 18 weeks standard lead time. The product is available in surface mount configuration. The product hb, is a highly preferred choice for users. 9-acepack smit is the supplier device package value. The maximum power of the product is 250 w. The product is designated with the ear99 code number.
