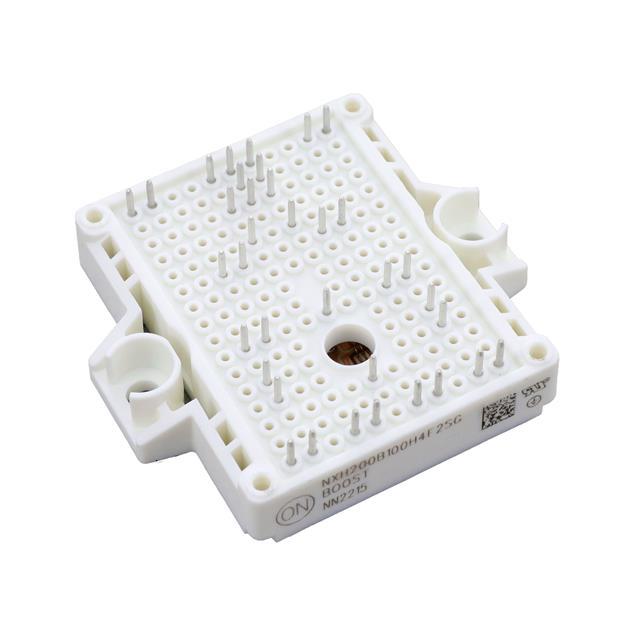

onsemi NXH200B100H4F2SG
Product Information
Package Type:
PIM56
Current - Collector (Ic) (Max):
100 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.4V @ 15V, 100A
Voltage - Collector Emitter Breakdown (Max):
1000 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Input Capacitance (Cies) @ Vce:
6.523 nF @ 20 V
Package / Case:
Module
Input:
Standard
NTC Thermistor:
Yes
REACH Status:
REACH Unaffected
Configuration:
Three Level Inverter
Package:
Tray
Moisture Sensitivity Level (MSL):
Not Applicable
IGBT Type:
Trench Field Stop
Current - Collector Cutoff (Max):
200 µA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
36-PIM (56.7x48)
Power - Max:
93 W
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search NXH200B100H4F2SG on website for other similar products.
We accept all major payment methods for all products including ET23425094. Please check your shopping cart at the time of order.
You can order onsemi brand products with NXH200B100H4F2SG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBT Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi NXH200B100H4F2SG. You can also check on our website or by contacting our customer support team for further order details on onsemi NXH200B100H4F2SG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23425094 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23425094.
Yes. We ship NXH200B100H4F2SG Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is NXH200B100H4F2SG. The package is a sort of pim56. The maximum collector current includes 100 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.4v @ 15v, 100a. The maximum collector emitter breakdown voltage of the product is 1000 v. The product has -40°c ~ 150°c (tj) operating temperature range. It holds 6.523 nf @ 20 v of input capacitance. Moreover, the product comes in module. Its input values include standard. NTC Thermistor - yes. In addition, it is reach unaffected. The product is available in three level inverter configuration. It is shipped in tray package . Its typical moisture sensitivity level is not applicable. Features an IGBT trench field stop type. In addition, 200 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. 36-pim (56.7x48) is the supplier device package value. The maximum power of the product is 93 w. The product is designated with the ear99 code number.
