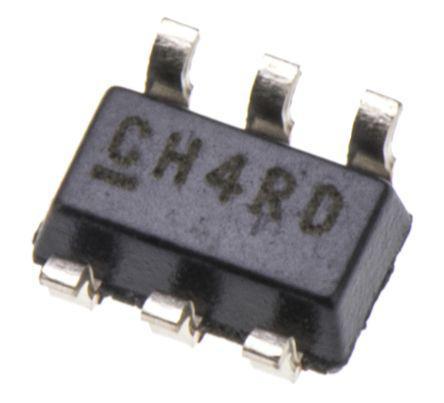

AT42QT1010-TSHR, Capacitive Touch Screen Controller, 9 bit Serial 2-Wire, 6-Pin SOT-23

Enrgtech Part No: ET16765573
|
Manufacturer Part No:
AT42QT1010-TSHR
|
Manufacturer: Microchip

AT42QT1010-TSHR , Capacitive Touch Screen Controller, 9 bit Serial 2-Wire, 6-Pin SOT-23

Product Information

Sensing Technology:

Spread-Spectrum Charge-Transfer

Dimensions:

2.05 x 2 x 0.55mm

Mounting Type:

Surface Mount

Maximum Operating Temperature:

+85 °C

Height:

0.55mm

Typical Operating Supply Voltage:

1.8 to 5.5 V

Width:

2mm

Length:

2.05mm

Package Type:

SOT-23

Interface Type:

Digital Output

Minimum Operating Temperature:

-40 °C

Resolution:

14 bit

Checking for live stock

The Microchip AT42QT1010-TSHR is a sophisticated single-key capacitive touch controller IC designed to seamlessly integrate touch functionality into various electronic applications. Utilising patented spread-spectrum charge-transfer technology, this digital burst-mode sensor provides exceptional proximity and touch detection across diverse non-conductive materials such as glass, plastic, and wood. Its compact SOT-23-6 packaging and minimal external component requirements make it an efficient solution for modern, streamlined user interface designs.

What Makes Our Product Stand Out?

This Microchip AT42QT1010-TSHR sensor IC offers unparalleled environmental adaptability by combining high-sensitivity proximity detection with advanced noise-rejection filtering for stable performance. Its self-calibration feature ensures consistent reliability without manual tuning, significantly reducing development time and maintenance.

Adaptive Sensing: Detects touch through thick overlays, including glass and stone.
Power Efficiency: Features a low-power mode for battery-operated devices.
Robust Signal: Patented "consensus" filter confirms touches to prevent false triggers.

Core Performance Features & Key Uses

Technical Specifications:
Operating Voltage: 1.8V to 5.5V.
Number of Channels: 1 (Single Key).
Interface: Digital Active High.
Resolution: 14-bit.
Package: SOT-23-6.
Suitable Environments:
Moisture-prone control panels.
Industrial human-machine interfaces.
Consumer electronics and appliances.
Tamper-proof outdoor security pads.
