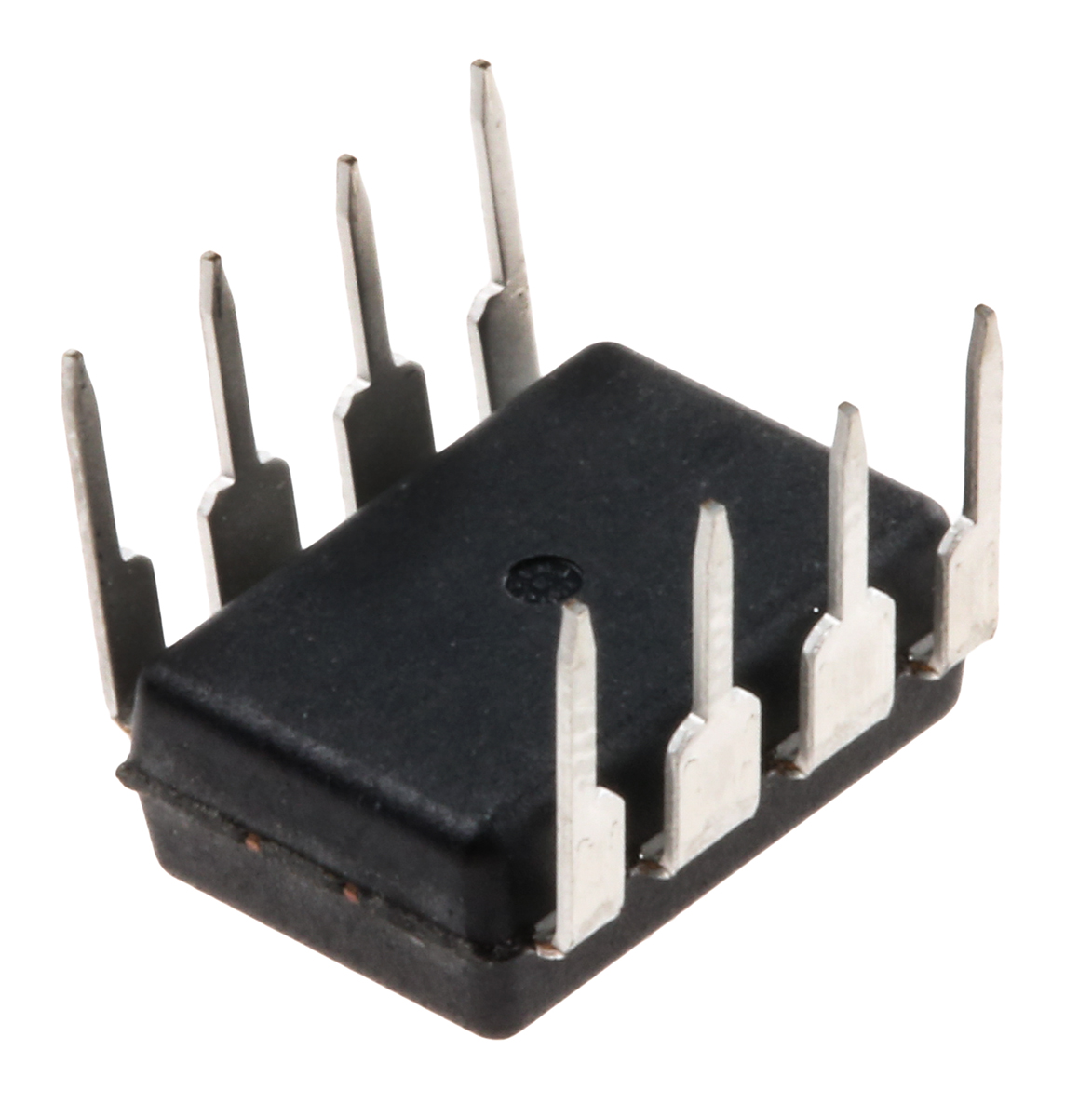

Infineon ICE3BR0665JXKLA1, PWM Current Mode Controller, 9.95 A, 65 kHz, -0.3 → 27 V, 8-Pin DIP

ICE3BR0665JXKLA1 Infineon , PWM Current Mode Controller, 9.95 A, 65 kHz, -0.3 → 27 V, 8-Pin DIP
ICE3BR0665JXKLA1
Infineon

Product Information

Dimensions:
9.77 x 6.6 x 4.8mm
Control Method:
Current
Width:
6.6mm
Fall Time:
30ns
Minimum Operating Supply Voltage:
-0.3 V
Maximum Switching Frequency:
65 kHz
Package Type:
DIP
Maximum Duty Cycle:
75%
Maximum Operating Supply Voltage:
27 V
Maximum Operating Temperature:
+150 °C
Topology:
Flyback
Number of Outputs:
1
Length:
9.77mm
PWM Controller Type:
Current Mode
Pin Count:
8
Mounting Type:
Through Hole
Output Current:
9.95 A
Height:
4.8mm
Output Voltage:
650 V
Minimum Operating Temperature:
-40 °C
Rise Time:
30ns
RoHs Compliant
Checking for live stock

This is PWM Current Mode Controller 9.95 A 65 kHz -0.3 → 27 V 8-Pin DIP manufactured by Infineon. The manufacturer part number is ICE3BR0665JXKLA1. The given dimensions of the product include 9.77 x 6.6 x 4.8mm. It features current controlling mechanism. Furthermore, the product is 6.6mm wide. Its fall time is about 30ns . While its minimum operating supply voltage is -0.3 v. It has a maximum 65 khz switching frequency. The package is a sort of dip. It has maximum 75% duty cycle . It has 27 v maximum operating supply voltage. It has a maximum operating temperature of +150 °c. Topology includes flyback. Additionally, the product is supplied with 1 outputs. Its accurate length is 9.77mm. It has a standard current mode type PWM controller . It contains 8 pins. The product is available in through hole configuration. It carries 9.95 a output current. In addition, the height is 4.8mm. Features a 650 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Whereas, the rise time is 30ns .
