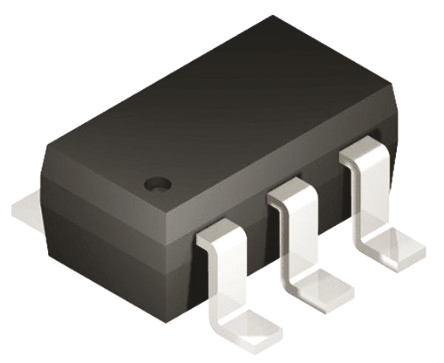

DiodesZetex AP3105KTR-G1, PWM Current Mode Controller, 350 mA, 70 kHz, 10 → 25 V, 6-Pin SOT-23

AP3105KTR-G1 DiodesZetex , PWM Current Mode Controller, 350 mA, 70 kHz, 10 → 25 V, 6-Pin SOT-23
DiodesZetex

Product Information

Number of Outputs:
1
PWM Controller Type:
Current Mode
Output Current:
350 mA
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
10 V
Minimum Operating Temperature:
-40 °C
Control Method:
Current
Maximum Switching Frequency:
70 kHz
Height:
1.3mm
Width:
1.7mm
Length:
3.1mm
Package Type:
SOT-23
Maximum Duty Cycle:
80%
Maximum Operating Supply Voltage:
25 V
Rise Time:
250ns
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Fall Time:
100ns
RoHs Compliant
Checking for live stock

This is PWM Current Mode Controller 350 mA 70 kHz 10 → 25 V 6-Pin SOT-23 manufactured by DiodesZetex. The manufacturer part number is AP3105KTR-G1. Additionally, the product is supplied with 1 outputs. It has a standard current mode type PWM controller . It carries 350 ma output current. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 10 v. Whereas, the minimum operating temperature of the product is -40 °c. It features current controlling mechanism. It has a maximum 70 khz switching frequency. In addition, the height is 1.3mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sot-23. It has maximum 80% duty cycle . It has 25 v maximum operating supply voltage. Whereas, the rise time is 250ns . It has a maximum operating temperature of +150 °c. It contains 6 pins. Its fall time is about 100ns .

pdf icon
PWM Controller Current-Mode SOT23-6 Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
