Name: ADP2303ARDZ-5.0-R7, Analog Devices
Brand: Analog Devices
SKU: ET14156892
Price: 1.34 GBP
Availability: InStock

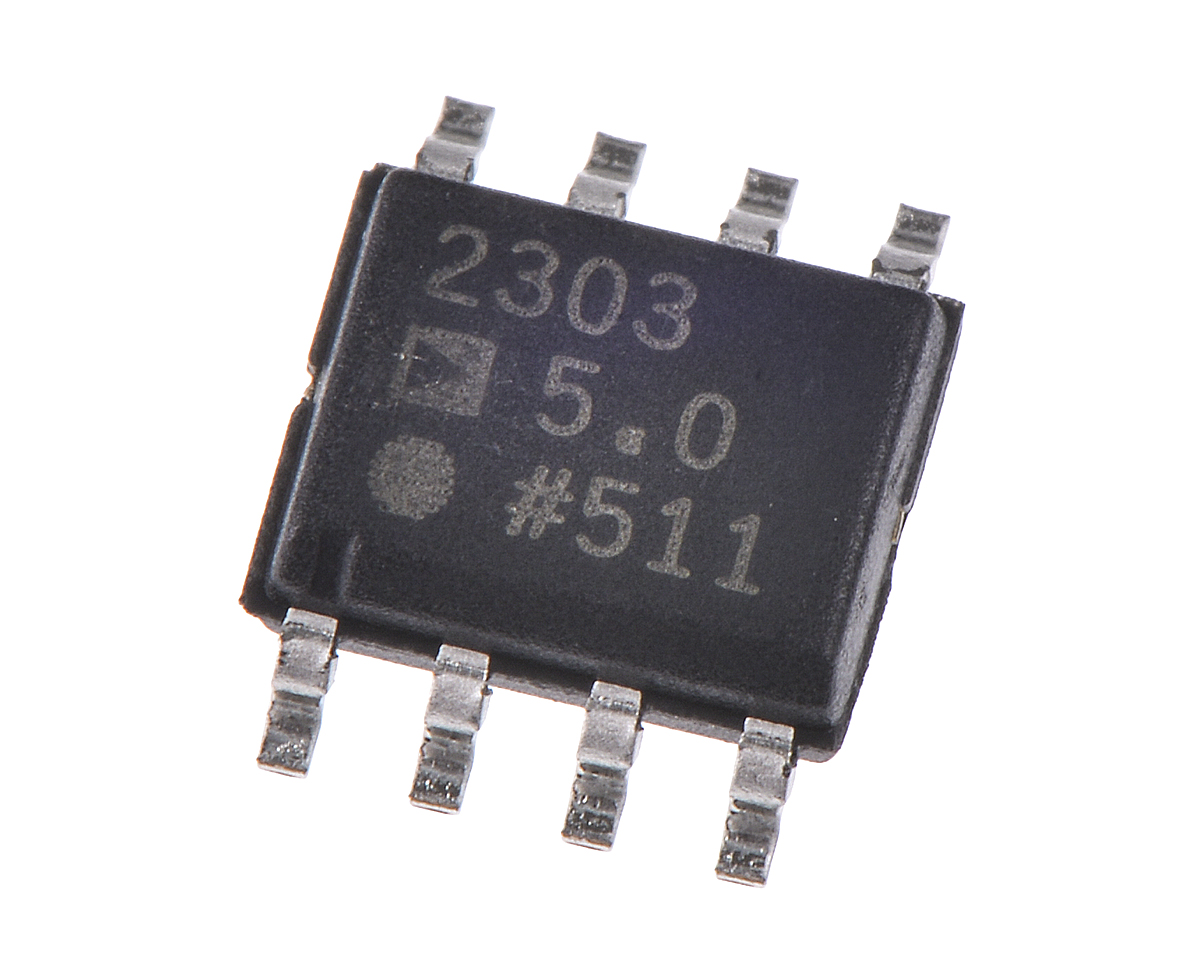

ADP2303ARDZ-5-0-R7 Analog Devices ADP2303ARDZ-5.0-R7, PWM Current Mode Controller, 3 A, 700 kHz, 3 → 20 V SOIC, 8-Pin

(0)

Product Information

Number of Outputs:

Rise Time:

170ns

Output Current:

3 A

Dimensions:

5 x 4 x 1.75mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

3 V

Minimum Operating Temperature:

-40 °C

Control Method:

Current

Maximum Switching Frequency:

700 kHz

Height:

1.75mm

Width:

4mm

Length:

5mm

Checking for live stock

This is PWM Current Mode Controller 3 A 700 kHz 3 → 20 V SOIC 8-Pin manufactured by Analog Devices. The manufacturer part number is ADP2303ARDZ-5.0-R7. Additionally, the product is supplied with 1 outputs. Whereas, the rise time is 170ns . It carries 3 a output current. The given dimensions of the product include 5 x 4 x 1.75mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 3 v. Whereas, the minimum operating temperature of the product is -40 °c. It features current controlling mechanism. It has a maximum 700 khz switching frequency. In addition, the height is 1.75mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Features a 5 v output voltage. The package is a sort of soic. It has maximum 50% duty cycle . It has 20 v maximum operating supply voltage. It has a standard current mode type PWM controller . Its fall time is about 280ns . It has a maximum operating temperature of +125 °c. It contains 8 pins. Topology includes buck.

ADP2302/ADP2303, 2A / 3A, 20V, 700kHz, Nonsynchronous Step-Down Regulators(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
