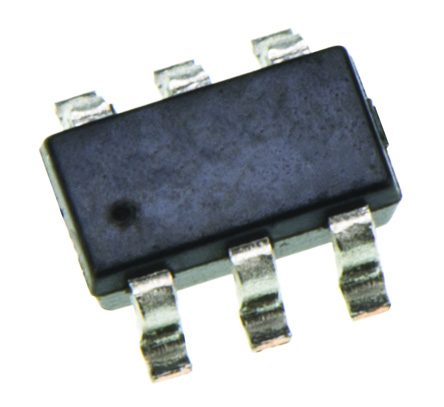

This is PWM Current Mode Controller 350 mA 70 kHz 10 → 25 V 6-Pin SOT-26 manufactured by DiodesZetex. The manufacturer part number is AP3125AKTR-G1. Additionally, the product is supplied with 1 outputs. Whereas, the rise time is 250ns . It carries 350 ma output current. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 10 v. Whereas, the minimum operating temperature of the product is -40 °c. It features current controlling mechanism. It has a maximum 70 khz switching frequency. In addition, the height is 1.3mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sot-26. It has maximum 80% duty cycle . It has 25 v maximum operating supply voltage. It has a standard current mode type PWM controller . Its fall time is about 100ns . It has a maximum operating temperature of +150 °c. It contains 6 pins. Topology includes flyback.
AP3125A/V/L/R, Green Mode PWM Controller(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
Reviews
Be the first
to
review.
Don’t hesitate to ask questions for
better
clarification.
Related products
FAQs
Yes. You can also search AP3125AKTR-G1 on website for other similar products.
We accept all major payment methods for all products including ET13830449. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with AP3125AKTR-G1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PWM category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex AP3125AKTR-G1, PWM Current Mode Controller, 350 mA, 70 kHz, 10 → 25 V, 6-Pin SOT-26. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex AP3125AKTR-G1, PWM Current Mode Controller, 350 mA, 70 kHz, 10 → 25 V, 6-Pin SOT-26.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13830449 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13830449.
Yes. We ship AP3125AKTR-G1 Internationally to many countries around the world.
