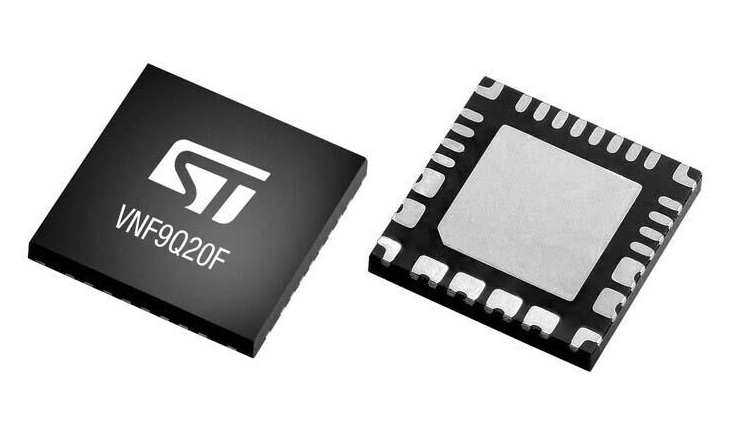

STMicroelectronics VNF9Q20FTR, QuadHigh Side, High Side Power Switch IC 32-Pin, QFN 6x6

VNF9Q20FTR STMicroelectronics , QuadHigh Side, High Side Power Switch IC 32-Pin, QFN 6x6
VNF9Q20FTR STMicroelectronics , QuadHigh Side, High Side Power Switch IC 32-Pin, QFN 6x6
STMicroelectronics

Product Information

Number of Outputs:
4
Power Switch Type:
High Side
Number of Inputs:
2
Power Switch Topology:
High Side
Maximum Supply Voltage:
28V
Series:
VIPower
Switch On Resistance RdsOn:
21.5mΩ
Automotive Standard:
AEC-Q100
Width:
6 mm
Length:
6mm
Package Type:
QFN 6 x 6
Interface Type:
SPI
Minimum Operating Temperature:
-40°C
Standards/Approvals:
European directive 2002/95/EC
Operating Current:
34.5A
Product Type:
Power Switch IC
Maximum Operating Temperature:
150°C
Pin Count:
32
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is QuadHigh Side High Side Power Switch IC 32-Pin QFN 6x6 manufactured by STMicroelectronics. The manufacturer part number is VNF9Q20FTR. Additionally, the product is supplied with 4 outputs. Its power switch is of high side type . The product consists of 2 inputs. It has a high side power switch topology . The product requires a maximum 28v supply voltage . The product vipower, is a highly preferred choice for users. The product complies with automotive standard - aec-q100. Furthermore, the product is 6 mm wide. Its accurate length is 6mm. The package is a sort of qfn 6 x 6. It is a type of spi interface. Whereas, the minimum operating temperature of the product is -40°c. power switch ic is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. It contains 32 pins. It has a surface type mount .

pdf icon
Datasheet - VNF9Q20FTR(Technical Reference)
