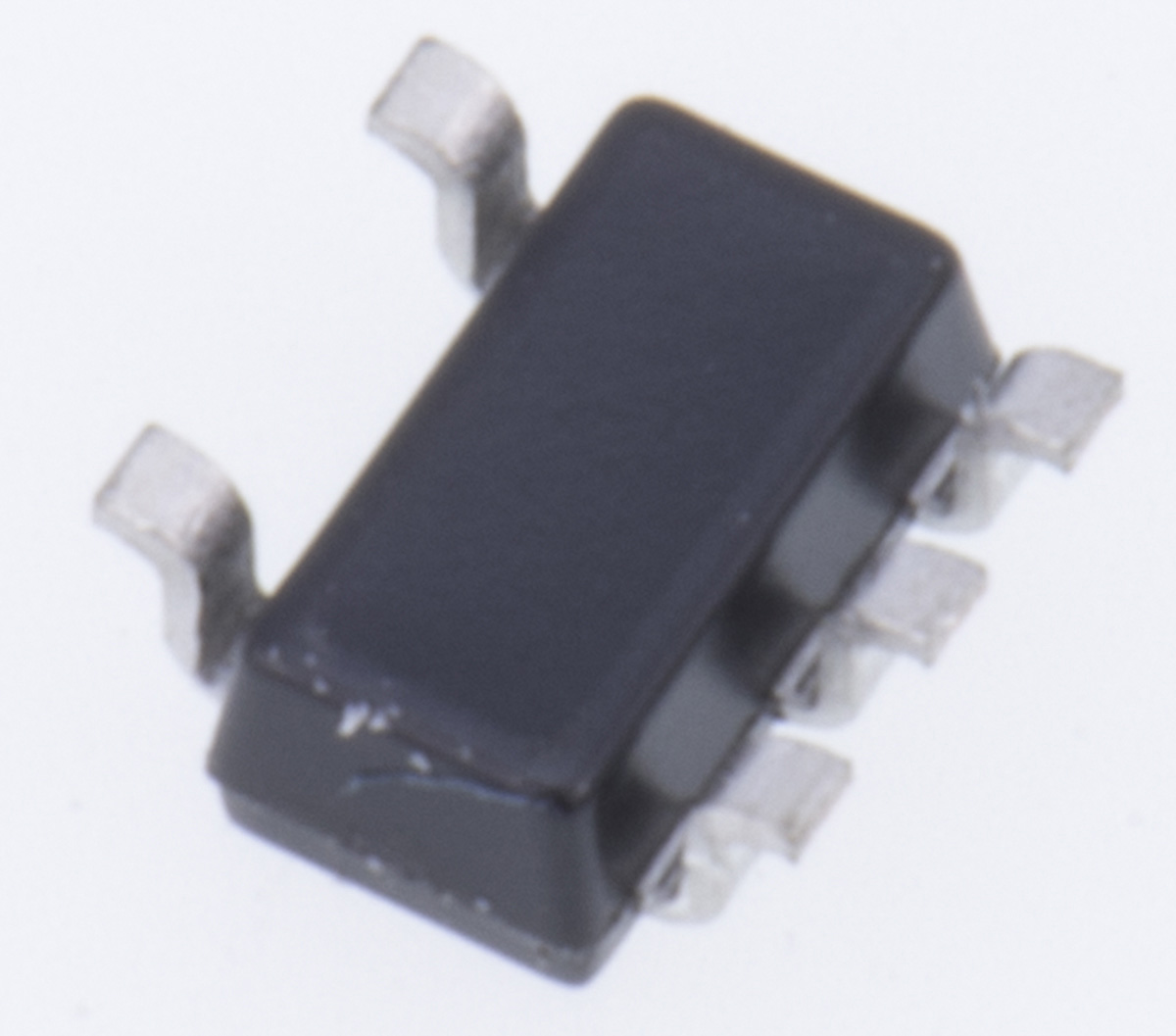

DiodesZetex AP2171WG-7 Intelligent Power Switch, High Side, 1A, 2.7 → 5.5V 5-Pin, SOT-25

AP2171WG-7 DiodesZetex Intelligent Power Switch, High Side, 1A, 2.7 → 5.5V 5-Pin, SOT-25
AP2171WG-7
DiodesZetex

Product Information

Number of Outputs:
1
Power Switch Type:
High Side Switch
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Maximum Operating Current:
1A
Minimum Operating Temperature:
-40 °C
Package Type:
SOT-25
Power Switch Topology:
High Side
Switch On Resistance:
115mΩ
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is Intelligent Power Switch High Side 1A 2.7 → 5.5V 5-Pin SOT-25 manufactured by DiodesZetex. The manufacturer part number is AP2171WG-7. Additionally, the product is supplied with 1 outputs. Its power switch is of high side switch type . The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. Moreover, the product needs a maximum 1a operating current . Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of sot-25. It has a high side power switch topology . In addition, it has about 115mω switch on resistance . It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 5 pins.

pdf icon
AP2161/AP2171 1A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH DATA SHEET(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AP2171WG-7 on website for other similar products.
We accept all major payment methods for all products including ET13846134. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with AP2171WG-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex AP2171WG-7 Intelligent Power Switch, High Side, 1A, 2.7 → 5.5V 5-Pin, SOT-25. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex AP2171WG-7 Intelligent Power Switch, High Side, 1A, 2.7 → 5.5V 5-Pin, SOT-25.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13846134 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13846134.
Yes. We ship AP2171WG-7 Internationally to many countries around the world.
