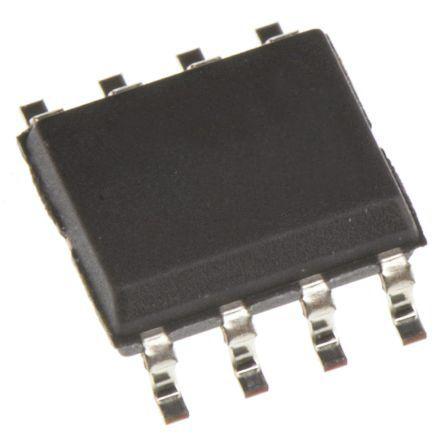

Maxim MAX701ESA+, Voltage Supervisor 5.5V max., Reset Input 8-Pin, SOIC

MAX701ESA- Maxim MAX701ESA+, Voltage Supervisor 5.5V max., Reset Input 8-Pin, SOIC
Maxim

Product Information

Number of Supervisors:
1
Manual Reset:
Yes
Maximum Monitored Voltage:
15V
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Minimum Reset Threshold Voltage:
3.3V
Minimum Monitored Voltage:
3V
Maximum Reset Threshold Voltage:
5.5V
Minimum Operating Supply Voltage:
-0.3 V
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
15.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Voltage Supervisor 5.5V max. Reset Input 8-Pin SOIC manufactured by Maxim. The manufacturer part number is MAX701ESA+. It has 1 high-quality supervisors . In addition, the product has a manual reset feature yes . It is designed with a maximum 15v monitored voltage . The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a minimum 3.3v reset threshold voltage . Additionally, it has a minimum 3v monitored voltage . It has a maximum 5.5v reset threshold voltage . While its minimum operating supply voltage is -0.3 v. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It has 15.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 8 pins.
