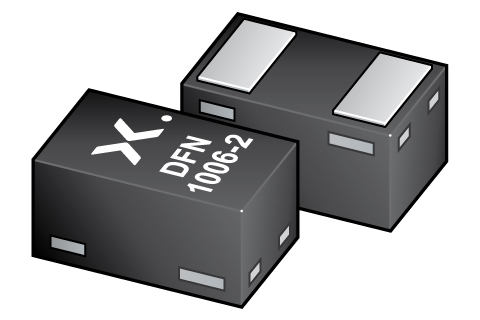

Nexperia RB520CS3002LYL SMT Schottky Rectifier Schottky Diode, 30V 200mA, 2-Pin DSN-1006-2

RB520CS3002LYL Nexperia SMT Schottky Rectifier Schottky Diode, 30V 200mA, 2-Pin DSN-1006-2
RB520CS3002LYL Nexperia SMT Schottky Rectifier Schottky Diode, 30V 200mA, 2-Pin DSN-1006-2
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Peak Reverse Current Ir:
0.5μA
Maximum Operating Temperature:
150°C
Rectifier Type:
Schottky
Series:
RB520CS3002L
Peak Reverse Repetitive Voltage Vrrm:
30V
Maximum Continuous Forward Current If:
200mA
Height:
0.5mm
Width:
0.62 mm
Length:
1.02mm
Package Type:
DSN-1006
Minimum Operating Temperature:
-55°C
Maximum Forward Voltage Vf:
450mV
Standards/Approvals:
No
Peak Non-Repetitive Forward Surge Current Ifsm:
3A
Product Type:
Diode
Diode Configuration:
Single
Pin Count:
2
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is SMT Schottky Rectifier Schottky Diode 30V 200mA 2-Pin DSN-1006-2 manufactured by Nexperia. The manufacturer part number is RB520CS3002LYL. The product complies with automotive standard - aec-q101. It has a maximum operating temperature of 150°c. This schottky product is highly suited for various professionals in various settings. The product rb520cs3002l, is a highly preferred choice for users. In addition, the height is 0.5mm. Furthermore, the product is 0.62 mm wide. Its accurate length is 1.02mm. The package is a sort of dsn-1006. Whereas, the minimum operating temperature of the product is -55°c. diode is a versatile product designed to provide user-defined applications. The diode features a single configuration. It contains 2 pins. It has a surface type mount .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
