Frequency Range:
535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 700MHz ~ 900MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz
HTSUS:
8529.10.9100
RoHS Status:
ROHS3 Compliant
Frequency Group:
Wide Band
Height (Max):
3.661" (92.98mm)
REACH Status:
REACH Unaffected
Applications:
4G/5G, AM, FM, Beidou, Galileo, GLONASS, GPS, GNSS, Wi-Fi
Gain:
-3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 1.6dBi, 2.8dBi, 3.3dBi, 3.7dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.9dBi, 0.4dBi
Number of Bands:
17
Package:
Bulk
Moisture Sensitivity Level (MSL):
3 (168 Hours)
RF Family/Standard:
Cellular, Navigation, WiFi
Frequency (Center/Band):
1.07MHz, 98MHz, 440MHz, 657.5MHz, 752MHz, 800MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 4.15GHz, 5.5GHz, 5.5375GHz
Termination:
RP-SMA Male, SMA Male, UHF Male
standardLeadTime:
11 Weeks
Ingress Protection:
IP67
Features:
Cable - 5m, LNA, Filter
Mounting Type:
Panel Mount
Antenna Type:
Dome
Series:
Raptor III
Power - Max:
10 W
VSWR:
2, 3.8
Return Loss:
-11.5dB
ECCN:
7A994

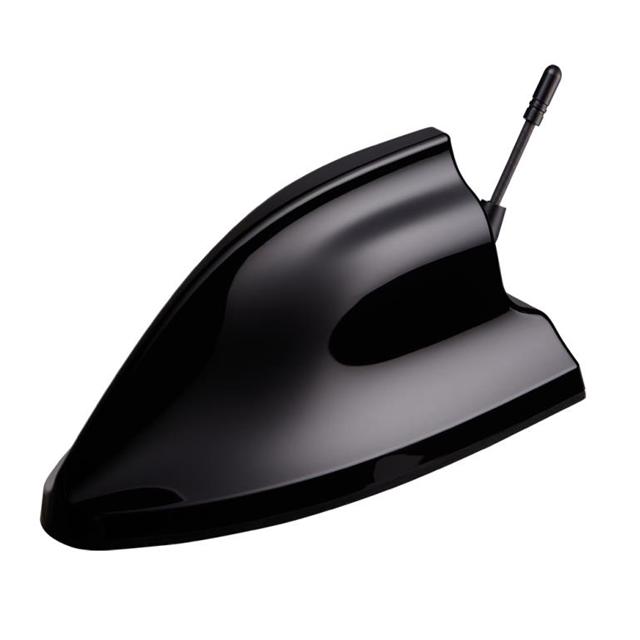

This is manufactured by Taoglas Limited. The manufacturer part number is MA1280.K.LBICGRT.001. The frequency range includes 535khz ~ 1.605mhz, 88mhz ~ 108mhz, 400mhz ~ 480mhz, 617mhz ~ 698mhz, 698mhz ~ 806mhz, 700mhz ~ 900mhz, 824mhz ~ 960mhz, 1.427ghz ~ 1.518ghz, 1.71ghz ~ 2.2ghz, 2.4ghz ~ 2.5ghz, 2.49ghz ~ 2.69ghz, 3.3ghz ~ 5ghz, 5.15ghz ~ 5.85ghz, 5.15ghz ~ 5.925ghz. It is assigned with possible HTSUS value of 8529.10.9100. The product is rohs3 compliant. The product boasts a wide band frequency group. Additionally, the 3.661" (92.98mm) is the maximum height of the product. In addition, it is reach unaffected. The product is widely employed in 4g/5g, am, fm, beidou, galileo, glonass, gps, gnss, wi-fi. The -3.7dbi, -1.9dbi, -0.3dbi, 1.6dbi, 1.6dbi, 2.8dbi, 3.3dbi, 3.7dbi, 3.6dbi, 0dbi, 1.8dbi, 0.6dbi, 0.9dbi, 0.4dbi is the gain value of a bespoke product. It contains 17 bands. It is shipped in bulk package . Its typical moisture sensitivity level is 3 (168 hours). The standard RF Family of the product includes cellular, navigation, wifi. While it has a frequency of 1.07mhz, 98mhz, 440mhz, 657.5mhz, 752mhz, 800mhz, 892mhz, 1.4725ghz, 1.561ghz, 1.575ghz, 1.602ghz, 1.955ghz, 2.45ghz, 2.59ghz, 4.15ghz, 5.5ghz, 5.5375ghz at center/band. The product features rp-sma male, sma male, uhf male termination style. It has a long 11 weeks standard lead time. It is IP rated with ip67. The splendid features of the product include cable - 5m, lna, filter. The product is available in panel mount configuration. It is a dome antenna. The product raptor iii, is a highly preferred choice for users. The maximum power of the product is 10 w. VSWR Information: 2, 3.8. It has a return loss of -11.5db. The product is designated with the 7a994 code number.
