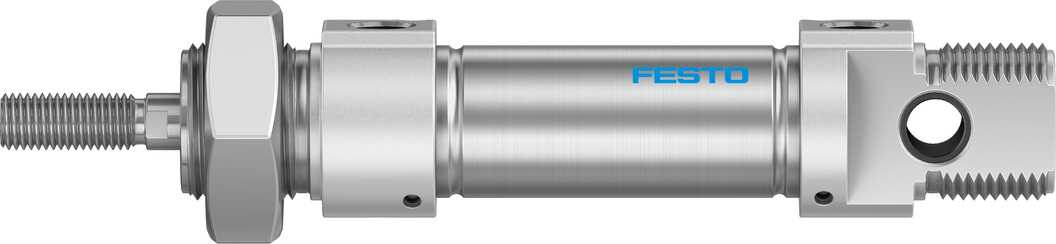

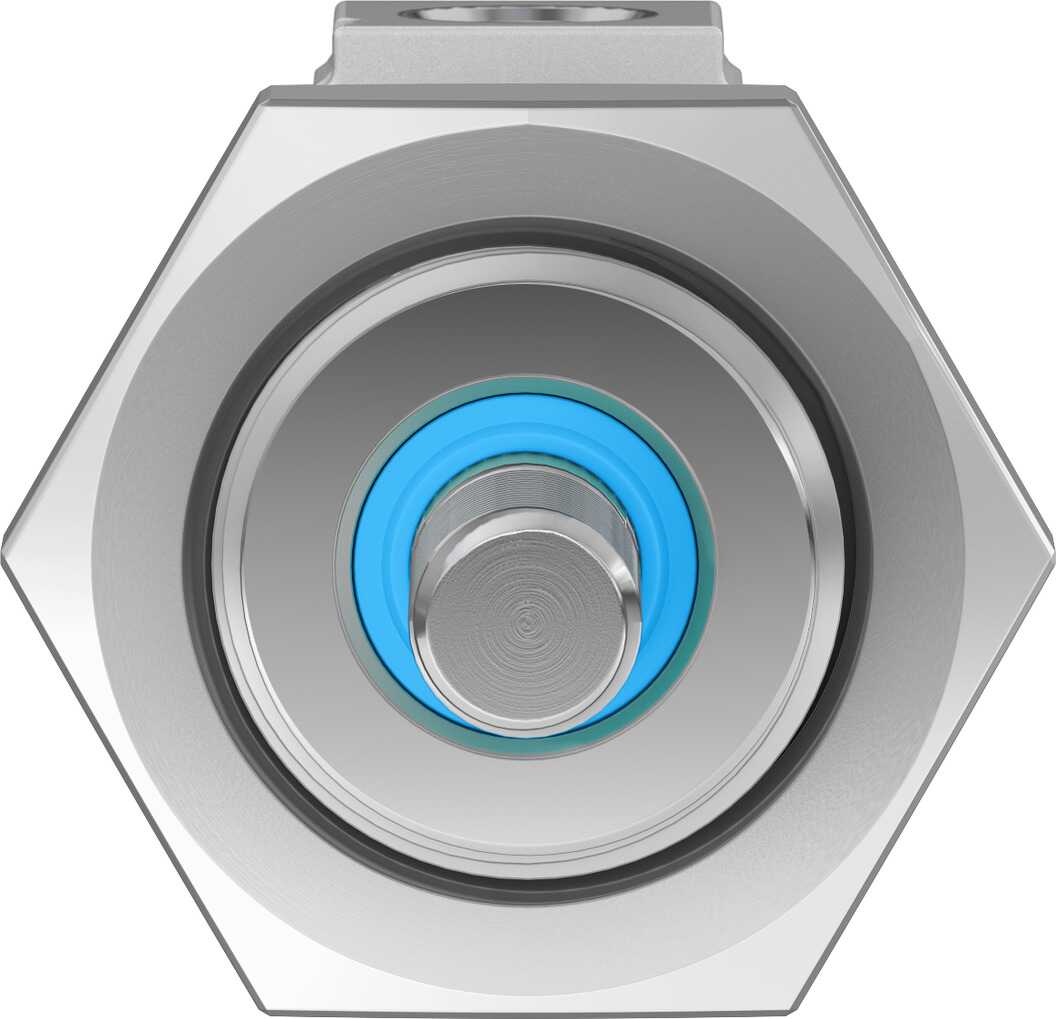

Festo DSNU-20-15-PPV-A, Double Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET14136961
|
Manufacturer Part No:
DSNU-20-15-PPV-A
|
Manufacturer: Festo

DSNU-20-15-PPV-A Festo , Double Action Pneumatic Roundline Cylinder

Product Information

Maximum Piston Speed:

100mm/s

Cushioning Type:

Air Cushion

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

1908290

Length:

147mm

Standards/Approvals:

CE marking to EU Explosion Protection Directive (ATEX), Germanischer Lloyd, ISO 6432, ISO 228-1, ATEX II 2G/II 2D, ISO 1179-1

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Flange, Rear, Direct, Foot, Front, Swivel

Checking for live stock

The Festo DSNU-20-15-PPV-A is a double-acting pneumatic cylinder used to create short, controlled linear movement in automated systems. It operates using compressed air on both sides of the piston, allowing precise extension and retraction. With a 20 mm bore and a 15 mm stroke, it is mainly used where space is limited but consistent motion is required. This cylinder is typically found in industrial automation setups where reliability and repeatability matter more than force or extended travel.

Unparalleled Benefits of Buying the Festo 1908290 Double-Action Pneumatic Cylinder

The cylinder body is made from corrosion-resistant materials, ensuring continuous operation in industrial environments. Its compact, round design allows easy mounting in tight spaces without requiring a redesign of the machine layout.

Double-acting operation for controlled movement.
Compact size for space-restricted assemblies.
Standard mounting options for easy integration.
Helps maintain fast cycle times and precise positioning.

Adjustable Cushioning for Smooth Motion

The PPV-A version includes adjustable pneumatic cushioning at both ends of the stroke. This helps reduce impact when the piston reaches the end positions, protecting both the cylinder and connected mechanical parts.

Typical Uses in Automation Systems

The DSNU-20-15-PPV-A is typically used in:

Pick-and-place mechanisms
Small clamping or positioning tasks
Assembly and packaging machines
Light material handling systems

DSNU-20-15-PPV-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)
