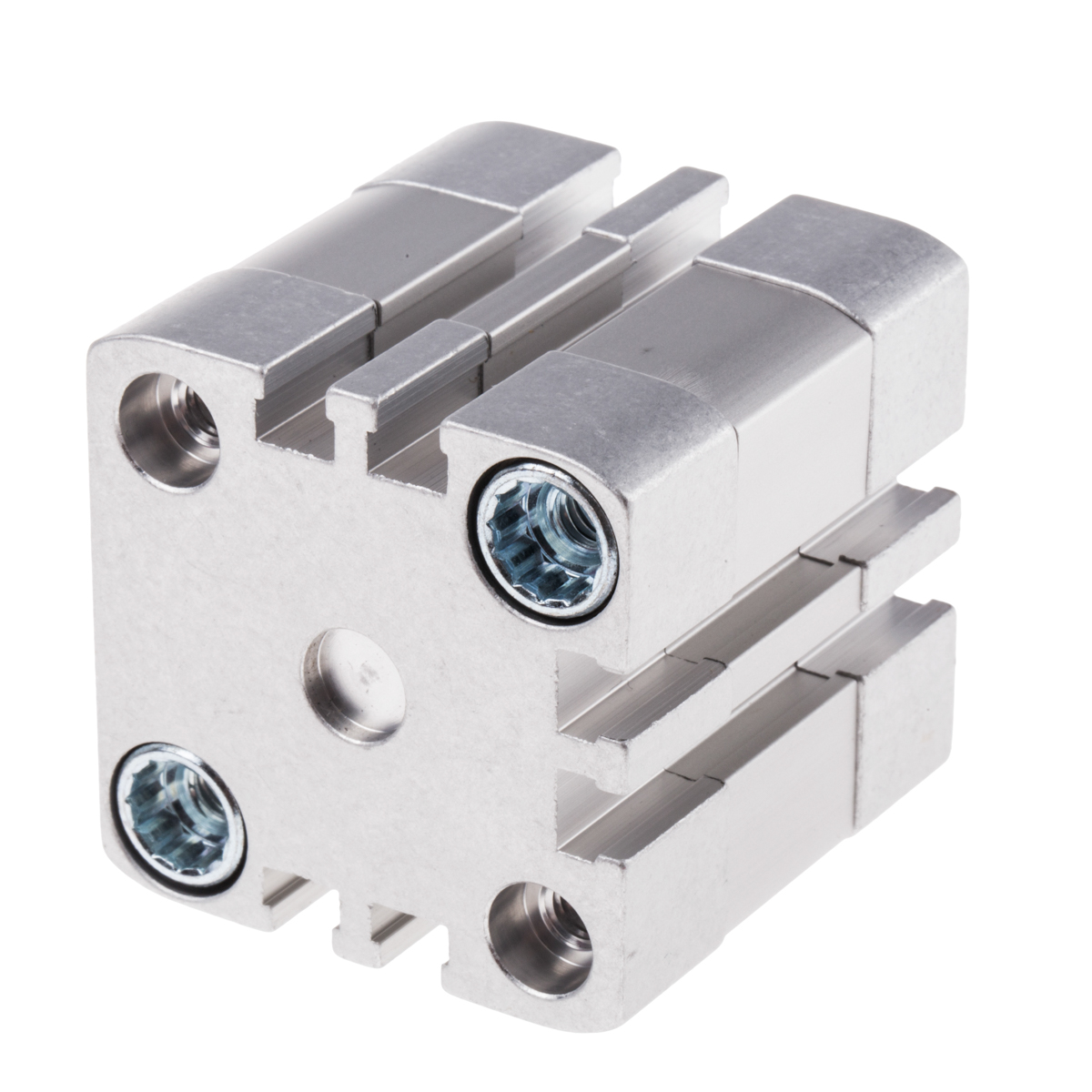

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 5mm stroke

Enrgtech Part No: ET14136916
|
Manufacturer Part No:
ADN-32-5-I-P-A
|
Manufacturer: Festo

ADN-32-5-I-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 5mm stroke

Product Information

Port Connection:

G 1/8

Dimensions:

47 x 47 x 55mm

Maximum Operating Pressure:

10 bar

Piston Rod Thread Gender:

Female

Model Number p:

536278

Stroke:

5mm

Pneumatic Connection:

G 1/8

Height:

47mm

Width:

47mm

Length:

55mm

Manufacturer Series:

ADN

Action:

Double

Checking for live stock

The Festo ADN-32-5-I-P-A is a double-acting pneumatic cylinder designed for applications where space is limited and precise movement is required. With a 32 mm bore and a short 5 mm stroke, it is mainly used for clamping, positioning, or small push-pull actions rather than long travel motion. This cylinder belongs to Festo’s compact ADN series, which is typically selected when machines require reliable linear movement in tight installation areas.

Core Capabilities of the Festo 536278 Double Action Pneumatic Cylinder

Being double-acting, the cylinder uses compressed air for both extension and retraction. This provides better control than spring-return designs and delivers consistent force in both directions. The short stroke helps reduce cycle time and improve repeatability in automated systems.

Controlled forward and return motion.
Suitable for fast, repetitive operations.
Stable movement even with frequent cycling.
Installed in automation lines where accuracy matters more.

Common Use Cases

This cylinder is often found in:

Industrial automation equipment
Assembly and packaging machines
Clamping and holding mechanisms
Pick-and-place systems
Light pressing or positioning tasks
