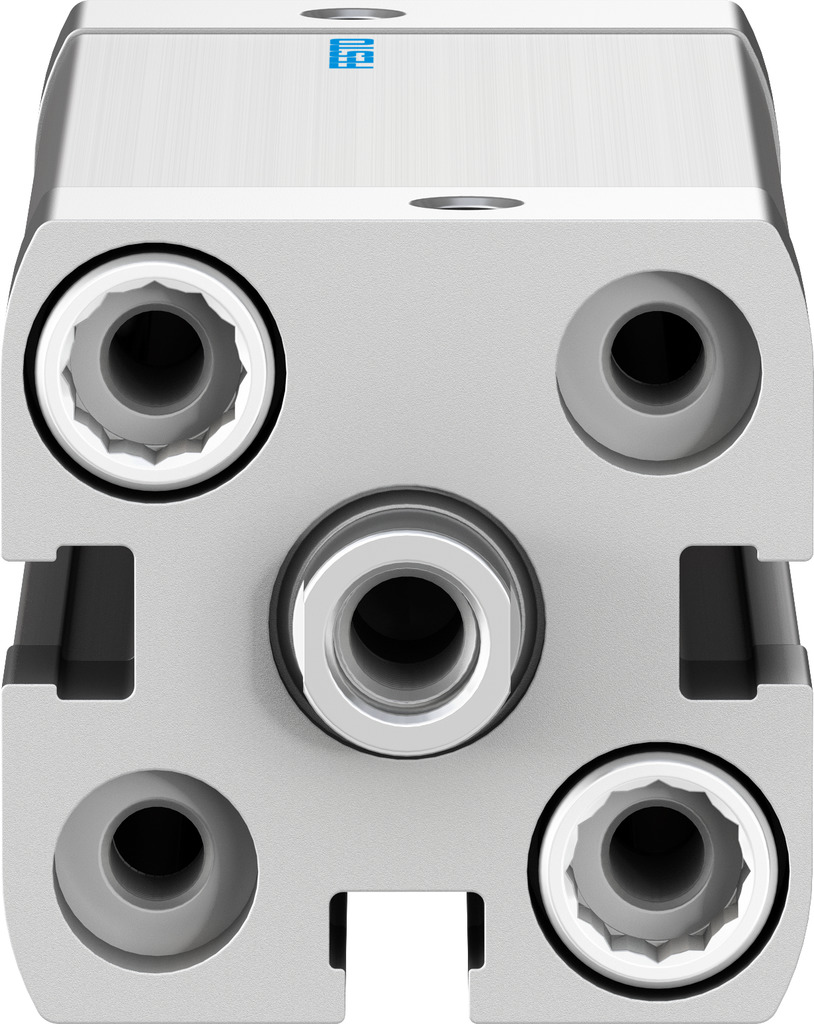

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 50mm stroke

Enrgtech Part No: ET14136912
|
Manufacturer Part No:
ADN-20-50-I-P-A
|
Manufacturer: Festo

ADN-20-50-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 50mm stroke

Product Information

Port Connection:

ISO Standard:

21287

Cushioning Type:

Elastic

Dimensions:

35.5 x 35.5 x 92.5mm

Weight:

229g

VDMA Standard:

VDMA24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536249

Stroke:

50mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Checking for live stock

The Festo ADN-20-50-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear movement is required. With a 20 mm bore and a 50 mm stroke, it delivers consistent push-and-pull motion in automated systems, machinery, and production equipment. This cylinder is typically employed in setups where standard cylinders are too long or bulky. Its compact body allows easy installation in tight machine frames without compromising performance.

Unmatched Advantages of Buying the Festo 536249 Double-Action Pneumatic Cylinder

The cylinder body is designed for continuous operation in industrial environments. It maintains stable movement under regular pressure changes and repeated cycling, making it suitable for long-running automation lines.

Double-acting design for controlled extension and retraction.
Compact form factor for space-restricted installations.
Designed for smooth, repeatable motion.
Simple mounting in machine frames.
Compatible with standard pneumatic connections.
Suitable for clean and controlled air systems.

Easy Integration into Pneumatic Systems

The ADN-series follows standardised mounting and connection dimensions, which simplifies integration into existing pneumatic setups. It pairs easily with Festo valves, fittings, and air preparation units.

Applicable Areas of the Product

This cylinder is widely used in:

Assembly and packaging machines
Pick-and-place mechanisms
Clamping and positioning tasks
Small automated production units
