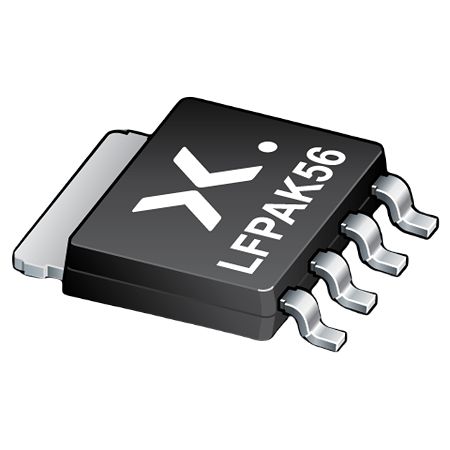

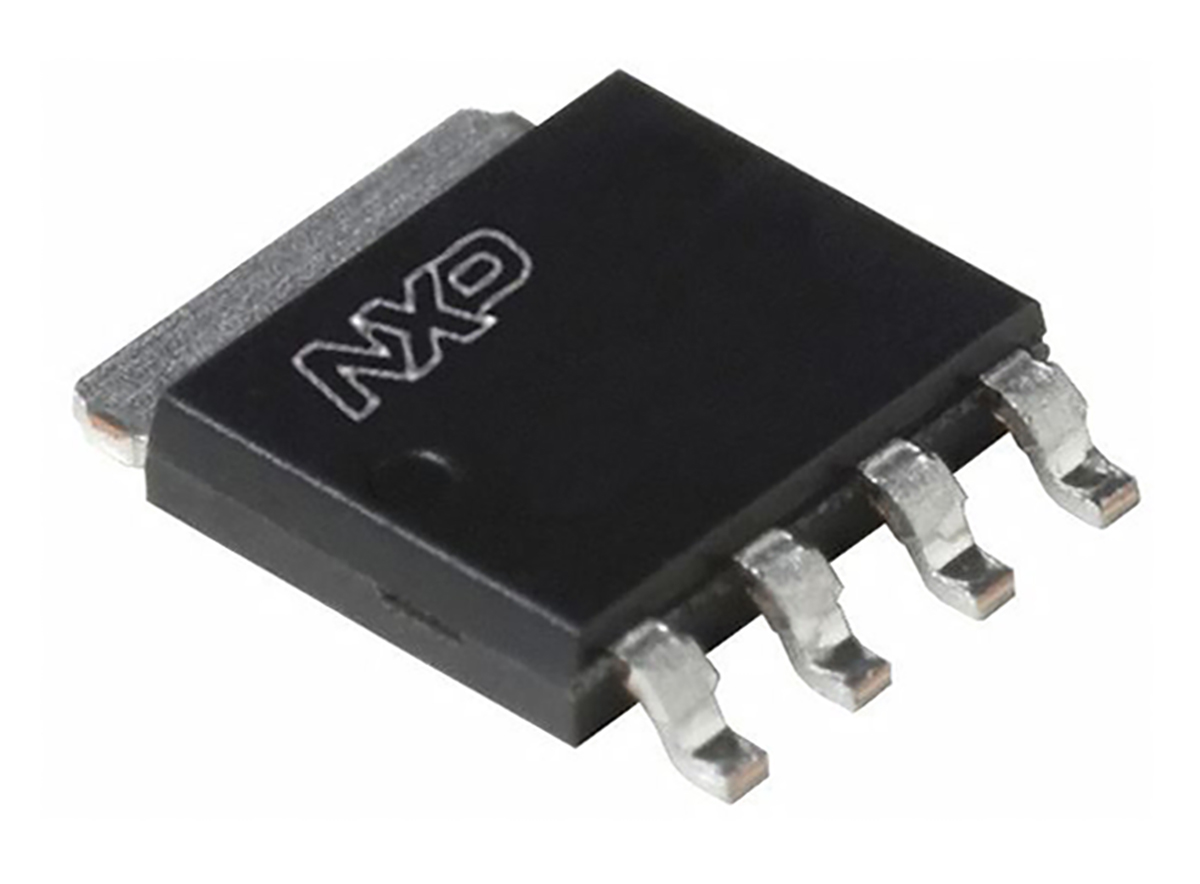

Nexperia PSMN5R5-60YS,115 N-channel MOSFET, 100 A, 60 V, 4-Pin SOT-669

PSMN5R5-60YS-115 Nexperia PSMN5R5-60YS,115 N-channel MOSFET, 100 A, 60 V, 4-Pin SOT-669
PSMN5R5-60YS-115 Nexperia PSMN5R5-60YS,115 N-channel MOSFET, 100 A, 60 V, 4-Pin SOT-669
Nexperia

Product Information

Automotive Standard:
No
Maximum Power Dissipation Pd:
130W
Product Type:
MOSFET
Maximum Drain Source Voltage Vds:
60V
Channel Mode:
Enhancement
Typical Gate Charge Qg @ Vgs:
56nC
Maximum Drain Source Resistance Rds:
8.3mΩ
Maximum Gate Source Voltage Vgs:
20 V
Forward Voltage Vf:
1.2V
Height:
1.1mm
Width:
4.1 mm
Length:
5mm
Package Type:
SOT-669
Minimum Operating Temperature:
-55°C
Standards/Approvals:
No
Maximum Continuous Drain Current Id:
100A
Channel Type:
Type N
Maximum Operating Temperature:
175°C
Pin Count:
4
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 100 A 60 V 4-Pin SOT-669 manufactured by Nexperia. The manufacturer part number is PSMN5R5-60YS,115. The product complies with automotive standard - no. mosfet is a versatile product designed to provide user-defined applications. The product carries enhancement channel mode. In addition, the height is 1.1mm. Furthermore, the product is 4.1 mm wide. Its accurate length is 5mm. The package is a sort of sot-669. Whereas, the minimum operating temperature of the product is -55°c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of 175°c. It contains 4 pins. It has a surface type mount .
