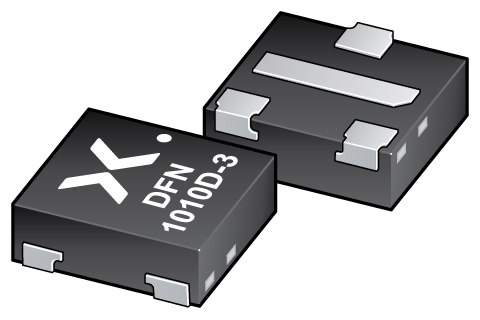

Nexperia PMXB56ENZ N-channel MOSFET, 3.2 A, 30 V, 4-Pin DFN1010D-3, SOT1215

PMXB56ENZ Nexperia N-channel MOSFET, 3.2 A, 30 V, 4-Pin DFN1010D-3, SOT1215
PMXB56ENZ Nexperia N-channel MOSFET, 3.2 A, 30 V, 4-Pin DFN1010D-3, SOT1215
Nexperia

Product Information

Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
3.6 nC @ 10 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
8.33 W
Maximum Gate Source Voltage:
20 V
Maximum Gate Threshold Voltage:
2V
Channel Type:
N
Width:
1.05mm
Length:
1.15mm
Maximum Drain Source Resistance:
87 mΩ
Package Type:
DFN1010D-3
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
3.2 A
Minimum Gate Threshold Voltage:
1V
Height:
0.36mm
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
Checking for live stock

This is N-channel MOSFET 3.2 A 30 V 4-Pin DFN1010D-3 SOT1215 manufactured by Nexperia. The manufacturer part number is PMXB56ENZ. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 3.6 nc @ 10 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 8.33 w maximum power dissipation. It features a maximum gate source voltage of 20 v. The product carries 2v of maximum gate threshold voltage. The product is available in [Cannel Type] channel. Furthermore, the product is 1.05mm wide. Its accurate length is 1.15mm. It provides up to 87 mω maximum drain source resistance. The package is a sort of dfn1010d-3. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 3.2 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 1v. In addition, the height is 0.36mm. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.
