Category:
Power MOSFET
Dimensions:
15.9 x 5.03 x 20.95mm
Maximum Continuous Drain Current:
30 A
Transistor Material:
Si
Width:
5.03mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
TO-247
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
73 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2200 pF @ 10 V
Length:
15.9mm
Pin Count:
3
Typical Turn-Off Delay Time:
136 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
220 W
Series:
Super J-MOS
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
20.95mm
Typical Turn-On Delay Time:
57 ns
Maximum Drain Source Resistance:
125 mΩ

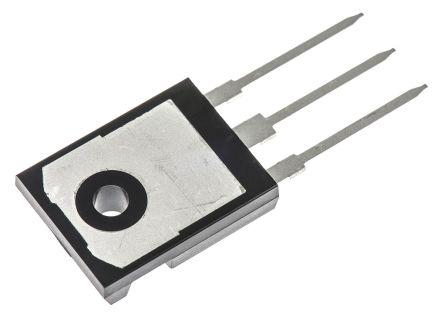

This is N-channel MOSFET 30 A 600 V Super J-MOS 3-Pin TO-247 manufactured by Fuji Electric. The manufacturer part number is FMW30N60S1HF. It is of power mosfet category . The given dimensions of the product include 15.9 x 5.03 x 20.95mm. While 30 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 5.03mm wide. The product offers single transistor configuration. It has a maximum of 600 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of to-247. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 73 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 2200 pf @ 10 v . Its accurate length is 15.9mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 136 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 220 w maximum power dissipation. The product super j-mos, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 20.95mm. In addition, it has a typical 57 ns turn-on delay time . It provides up to 125 mω maximum drain source resistance.
