Automotive Standard:
AEC-Q100 Grade 2
Data Bus Width:
32bit
Instruction Set Architecture:
Arm Cortex
Series:

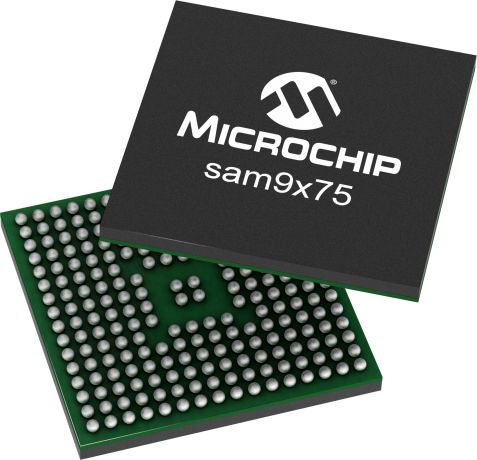

SAM9X7
Maximum Clock Frequency:
800MHz
Height:
1.217mm
Device Core:
ARM926EJ-S
Width:
11 mm
Length:
11mm
Package Type:
TFBGA
Interface Type:
USB, UART, SDIO, SPI, RGB, JTAG, PWM, CAN FD, Ethernet, ADC, I2S, CSI, MMC, MIPI-DSI, I2C, MIPI, LVDS
Minimum Operating Temperature:
-40°C
Standards/Approvals:
AEC-Q006, IEEE-1588, TSN, FIPS PUB 180, FIPS PUB 140-3, AEC-Q100 Grade 2, NIST SP 800-22, NIST SP 800-90B, FIPS PUB 140-2, FIPS PUB 46, FIPS PUB 197
Number of Cores:
1
Product Type:
Microcontroller
Maximum Operating Temperature:
125°C
Pin Count:
240
Mount Type:
Surface
