Automotive Standard:
AEC-Q100 Grade 2
Data Bus Width:
16bit
Instruction Set Architecture:
ARM
Series:

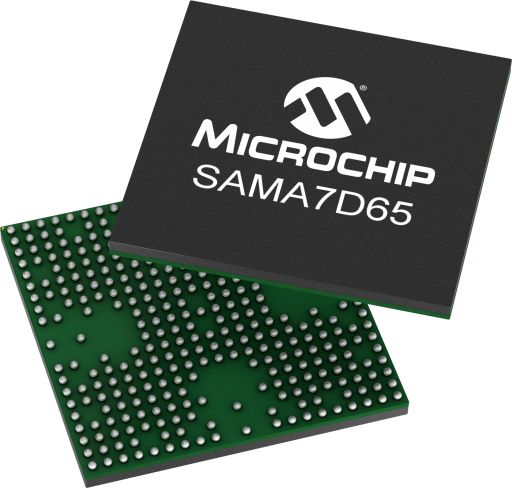

SAMA7D6
Maximum Clock Frequency:
1GHz
Height:
1.2mm
Device Core:
ARM Cortex A7
Width:
14 mm
Length:
14mm
Package Type:
TFBGA
Interface Type:
USB, Ethernet, NAND, CAN FD, FLEXCOM, MMC, MIPI-DSI, RGB, I3C, LVDS, SPI
Minimum Operating Temperature:
-40°C
Standards/Approvals:
NIST SP 800-22, IEEE1588, FIPS PUB 140-3, IEEE802.3az, FIPS PUB 46-3, IEEE802.1Qav, FIPS PUB 140-2, FIPS PUB 197, IEEE802.1AS
Number of Cores:
1
Product Type:
Microcontroller
Maximum Operating Temperature:
125°C
Pin Count:
427
Mount Type:
Surface
