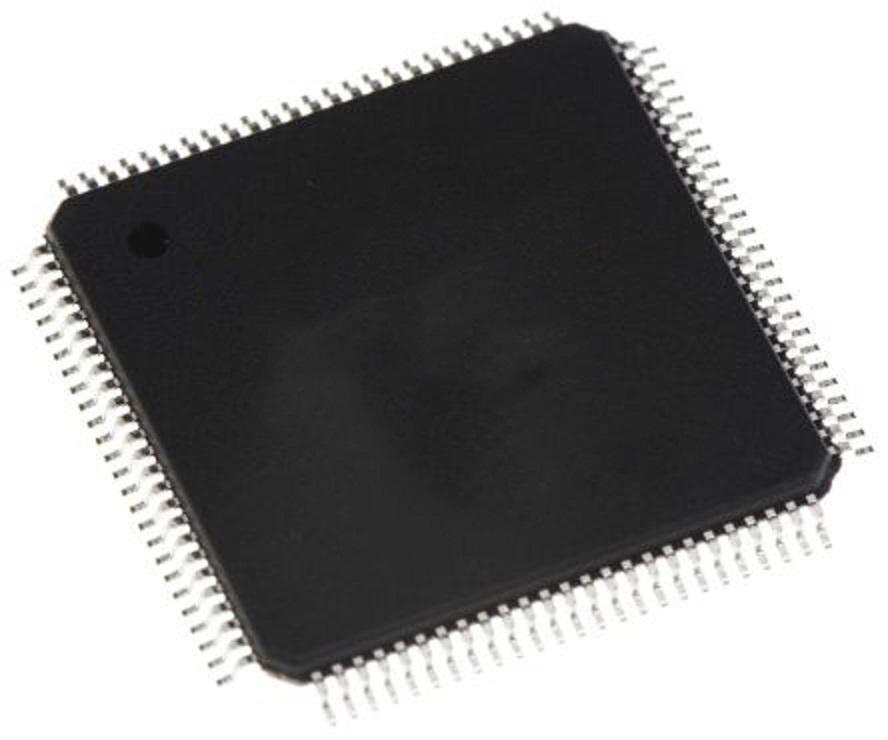

Renesas Electronics R5F565NEHDFP#30, 32bit RX MCU Microcontroller, RX65N, 120MHz, 2048 kB Flash, 100-Pin QFP

R5F565NEHDFP-30 Renesas Electronics R5F565NEHDFP#30, 32bit RX MCU Microcontroller, RX65N, 120MHz, 2048 kB Flash, 100-Pin QFP
Renesas Electronics

Product Information

Dimensions:
14 x 14 x 1.7mm
Number of I2C Channels:
14
Number of USART Channels:
0
USB Channels:
1
Width:
14mm
Program Memory Size:
2048 kB
RAM Size:
640 kB
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
QFP
Maximum Frequency:
120MHz
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
11
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
RX65N
Device Core:
RX MCU
Length:
14mm
Number of ADC Units:
1
Pin Count:
100
Mounting Type:
Surface Mount
Number of Ethernet Channels:
1
Height:
1.7mm
Typical Operating Supply Voltage:
2.7 → 3.6 V
ADCs:
22 x 12 bit
Number of CAN Channels:
2
Number of SPI Channels:
14
RoHs Compliant
Checking for live stock

This is 32bit RX MCU Microcontroller RX65N 120MHz 2048 kB Flash 100-Pin QFP manufactured by Renesas Electronics. The manufacturer part number is R5F565NEHDFP#30. The given dimensions of the product include 14 x 14 x 1.7mm. Moreover, it comprises 14 I2C channels. It contains 0 USART channels. The product integrates 1 USB channels. Furthermore, the product is 14mm wide. In addition, 2048 kb is the program memory size. The product has typical 640 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of qfp. It features 120mhz of maximum frequency. It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 11 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 1 maximum ethernet channels . The product belongs to a family rx65n. On the other hand, the rx mcu is the device core. Its accurate length is 14mm. It contains 1 ADC units. It contains 100 pins. The product is available in surface mount configuration. It contains 1 dedicated ethernet channels . In addition, the height is 1.7mm. It has 2.7 → 3.6 v of typical operating supply voltage. The ADCs included 22 x 12 bit. Moreover, it consists of 2 CAN channels. Furthermore, it is composed of 14 SPI channels.

pdf icon
Datasheet - R5F565NEHDFP#30(Technical Reference)
