RoHS Status:
ROHS3 Compliant
Program Memory Size:
512KB (512K x 8)
Peripherals:
Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
1.71V ~ 3.6V

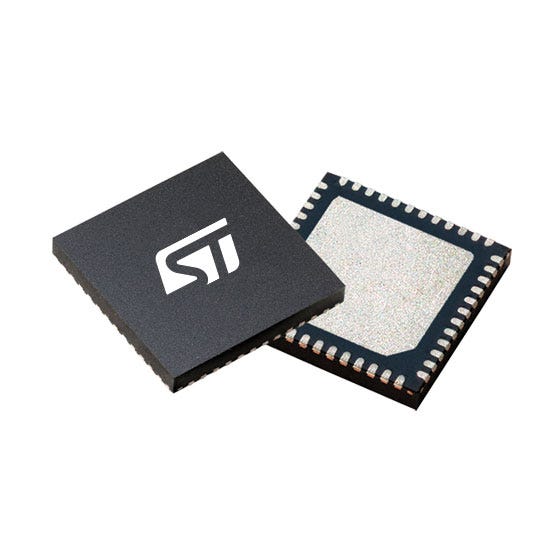

Package / Case:
48-UFQFN Exposed Pad
RAM Size:
2.5K x 8
Program Memory Type:
FLASH
REACH Status:
REACH Unaffected
Connectivity:
CANbus, I2C, IrDA, LINbus, SAI, SmartCard, SPDIF, SPI, UART/USART, USB
Package:
Tray
EEPROM Size:
-
Oscillator Type:
Internal
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Number of I/O:
33
standardLeadTime:
10 Weeks
Core Size:
32-Bit
Mounting Type:
Surface Mount
Series:
STM32U5
Supplier Device Package:
48-UFQFPN (7x7)
Data Converters:
A/D 10x12/14b SAR; D/A 2x12b
Core Processor:
ARM® Cortex®-M33
Speed:
160MHz
Program Memory Size:
512kB
DACs:
2 x 12 Bit
Automotive Standard:
No
Number of Timers:
16
RAM Size:
274kB
Data Bus Width:
32bit
Instruction Set Architecture:
ARM
Program Memory Type:
FLASH
Minimum Supply Voltage:
1.71V
Package Type:
LQFP
Analogue Comparators:
1
Maximum Clock Frequency:
160MHz
Product Type:
Microcontroller
Maximum Operating Temperature:
125°C
Device Core:
ARM Cortex M33
Standards/Approvals:
ECOPACK2
Interface Type:
SDM, CAN FD, I2C, ISO 7816, LIN, LPUART, Parallel, SAI, SMBus/PMBus, SPI, UART, USART, USB
Pin Count:
48
Mount Type:
Surface
Number of Programmable I/Os:
82
Series:
STM32U535xx
Maximum Supply Voltage:
3.6V
ADCs:
12 Bit, 14 bit
Minimum Operating Temperature:
-40°C
