Width:
13 mm
Height:
1.2mm
Program Memory Size:
2MB
RAM Size:
1.4MB
Automotive Standard:
No
Number of Timers:
19
DACs:
2 x 12 Bit
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
FLASH
Minimum Supply Voltage:
1.62V
Package Type:
TFBGA
Analogue Comparators:
2
Maximum Clock Frequency:
280MHz
Product Type:
Microcontroller
Maximum Operating Temperature:
85°C
Device Core:
ARM Cortex M7
Length:
13mm
Standards/Approvals:
FBI
Pin Count:
225
Mount Type:
Surface
Number of Programmable I/Os:
168
Maximum Supply Voltage:
3.6V
ADCs:
2 x 16 Bit
Minimum Operating Temperature:
-40°C
Manufacturer Standard Lead Time:
45 Weeks
Detailed Description:

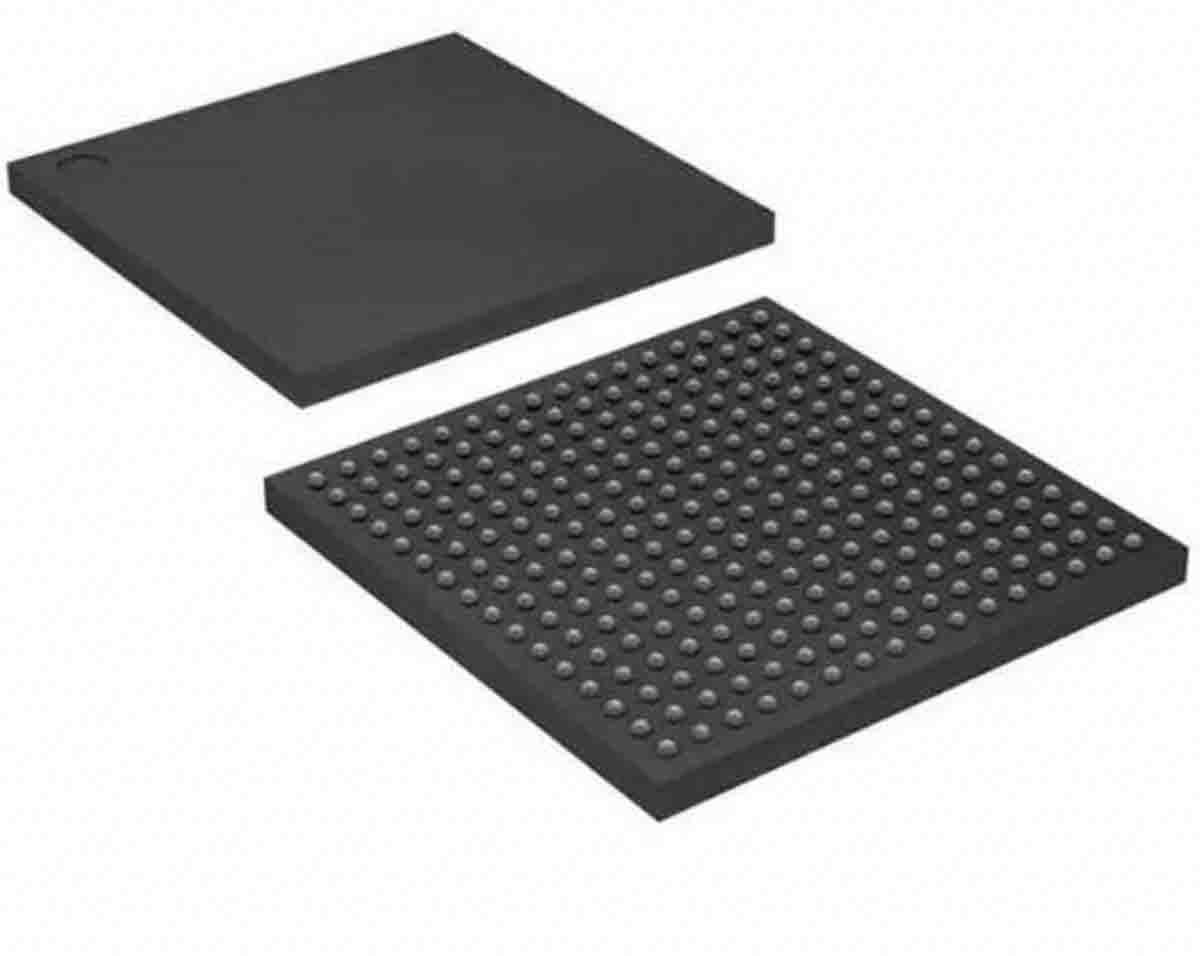

ARM® Cortex®-M7 STM32H7 Microcontroller IC 32-Bit 280MHz 2MB (2M x 8) FLASH 225-TFBGA (13x13)
Package / Case:
225-TFBGA
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
1.62V ~ 3.6V
Program Memory Size:
2MB (2M x 8)
RAM Size:
1.4M x 8
Base Part Number:
STM32
Program Memory Type:
FLASH
Packaging:
Tray
Connectivity:
CANbus, EBI/EMI, HDMI-CEC, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Manufacturer:
STMicroelectronics
Oscillator Type:
Internal
Number of I/O:
168
Core Size:
32-Bit
Mounting Type:
Surface Mount
Series:
STM32H7
Supplier Device Package:
225-TFBGA (13x13)
Data Converters:
A/D 24x16b; D/A 3x12b
Customer Reference:
Core Processor:
ARM® Cortex®-M7
Speed:
280MHz
