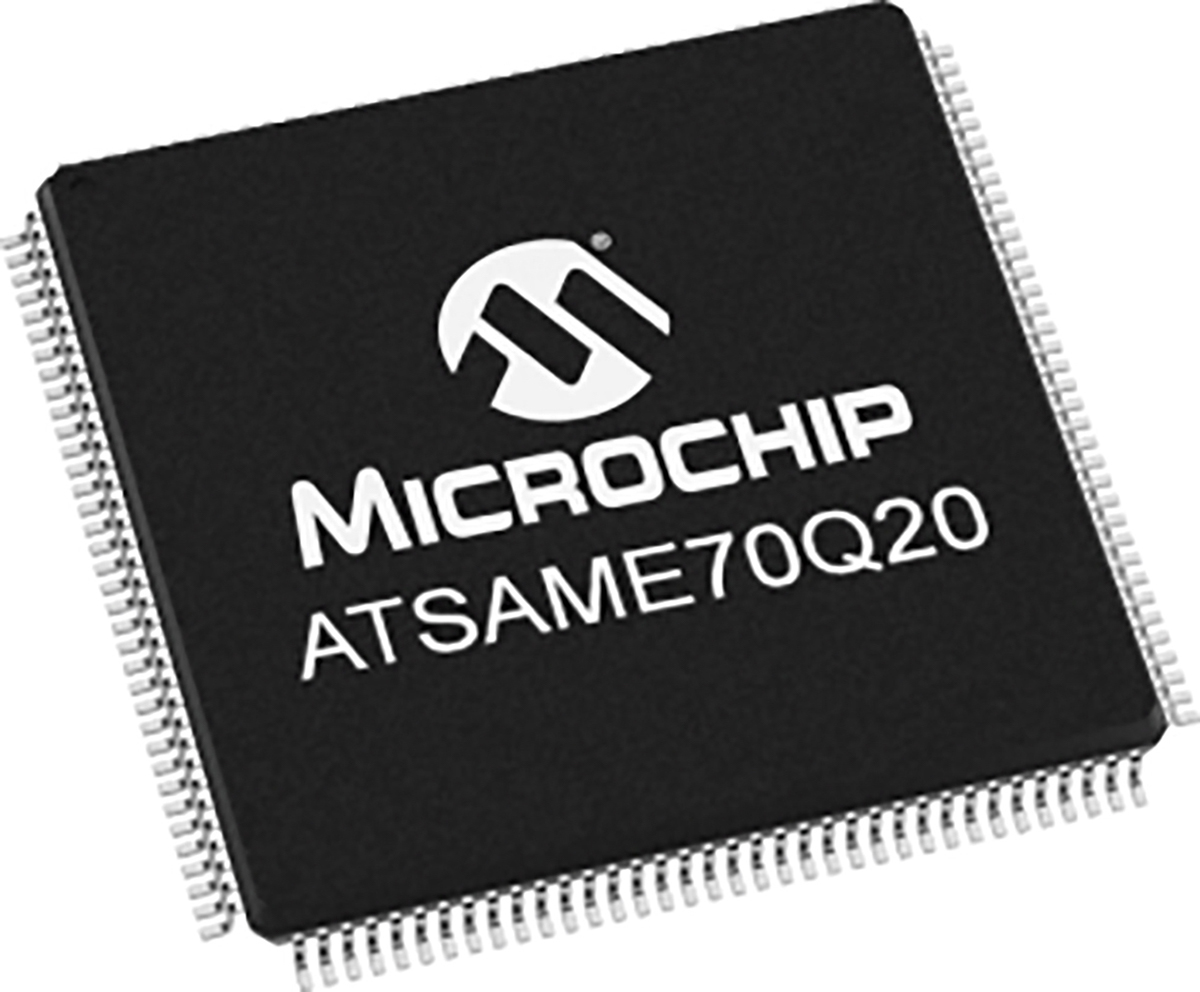

Microchip ATSAME70Q20A-AN, 32bit Microcontroller, 300MHz, 1.024 MB Flash, 144-Pin LQFP

ATSAME70Q20A-AN Microchip , 32bit Microcontroller, 300MHz, 1.024 MB Flash, 144-Pin LQFP
Microchip

Product Information

Dimensions:
20 x 20 x 1.4mm
Number of I2C Channels:
3
Number of USART Channels:
3
USB Channels:
1
Width:
20mm
Program Memory Size:
1.024 MB
Number of PWM Units:
2 x 16 bit
RAM Size:
384 kB
Automotive Standard:
AEC-Q100
Data Bus Width:
32bit
Instruction Set Architecture:
DSP
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
300MHz
Number of PCI Channels:
0
Number of LIN Channels:
1
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
5
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
ATSAM
Device Core:
ARM Cortex M7
Length:
20mm
Number of ADC Units:
1
Pin Count:
144
Pulse Width Modulation:
2 (4 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
1
Height:
1.4mm
Typical Operating Supply Voltage:
3.6 (Maximum) V
ADCs:
24 x 12 bit
Number of CAN Channels:
2
Number of SPI Channels:
3
RoHs Compliant
Checking for live stock

This is 32bit Microcontroller 300MHz 1.024 MB Flash 144-Pin LQFP manufactured by Microchip. The manufacturer part number is ATSAME70Q20A-AN. The given dimensions of the product include 20 x 20 x 1.4mm. Moreover, it comprises 3 I2C channels. It contains 3 USART channels. The product integrates 1 USB channels. Furthermore, the product is 20mm wide. In addition, 1.024 mb is the program memory size. Furthermore, it is composed of 2 x 16 bit PWM units. The product has typical 384 kb RAM size. The product complies with automotive standard - aec-q100. Moreover, the data bus width includes 32bit. The instruction set has dsp architecture. It is a flash program memory type. The package is a sort of lqfp. It features 300mhz of maximum frequency. It contains 0 PCI channel . It includes 1 dedicated LIN channels . It has a maximum operating temperature of +105 °c. It is also composed of 5 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 1 maximum ethernet channels . The product belongs to a family atsam. On the other hand, the arm cortex m7 is the device core. Its accurate length is 20mm. It contains 1 ADC units. It contains 144 pins. The product carries 2 (4 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 1 dedicated ethernet channels . In addition, the height is 1.4mm. It has 3.6 (maximum) v of typical operating supply voltage. The ADCs included 24 x 12 bit. Moreover, it consists of 2 CAN channels. Furthermore, it is composed of 3 SPI channels.
