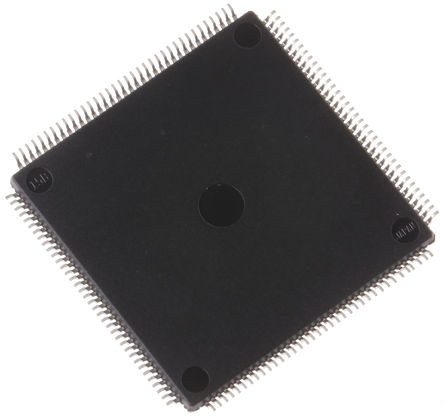

Renesas Electronics R5F564MLCDFB#V1, 32bit Microcontroller, 120MHz, 4 MB Flash, 144-Pin LQFP
Product Information
Dimensions:
20.1 x 20.1 x 1.55mm
Number of I2C Channels:
11
Number of USART Channels:
0
USB Channels:
1
Width:
20.1mm
Program Memory Size:
4 MB
RAM Size:
512 kB
Data Bus Width:
32bit
Instruction Set Architecture:
CISC Harvard
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
120MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
13
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
RX64M
Device Core:
RXv2
Length:
20.1mm
Number of ADC Units:
1
Pin Count:
144
Mounting Type:
Surface Mount
Number of Ethernet Channels:
1
Height:
1.55mm
Typical Operating Supply Voltage:
2.7 → 3.6 V
ADCs:
29 x 12 bit
Number of CAN Channels:
3
Number of SPI Channels:
10
Checking for live stock
FAQs
Yes. You can also search R5F564MLCDFB#31 on website for other similar products.
We accept all major payment methods for all products including ET18453007. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F564MLCDFB#31 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F564MLCDFB#V1, 32bit Microcontroller, 120MHz, 4 MB Flash, 144-Pin LQFP. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F564MLCDFB#V1, 32bit Microcontroller, 120MHz, 4 MB Flash, 144-Pin LQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18453007 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18453007.
Yes. We ship R5F564MLCDFB#31 Internationally to many countries around the world.
This is R5F564MLCDFB#V1 32bit Microcontroller 120MHz 4 MB Flash 144-Pin LQFP manufactured by Renesas Electronics. The manufacturer part number is R5F564MLCDFB#31. The given dimensions of the product include 20.1 x 20.1 x 1.55mm. Moreover, it comprises 11 I2C channels. It contains 0 USART channels. The product integrates 1 USB channels. Furthermore, the product is 20.1mm wide. In addition, 4 mb is the program memory size. The product has typical 512 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has cisc harvard architecture. It is a flash program memory type. The package is a sort of lqfp. It features 120mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 13 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 1 maximum ethernet channels . The product belongs to a family rx64m. On the other hand, the rxv2 is the device core. Its accurate length is 20.1mm. It contains 1 ADC units. It contains 144 pins. The product is available in surface mount configuration. It contains 1 dedicated ethernet channels . In addition, the height is 1.55mm. It has 2.7 → 3.6 v of typical operating supply voltage. The ADCs included 29 x 12 bit. Moreover, it consists of 3 CAN channels. Furthermore, it is composed of 10 SPI channels.
