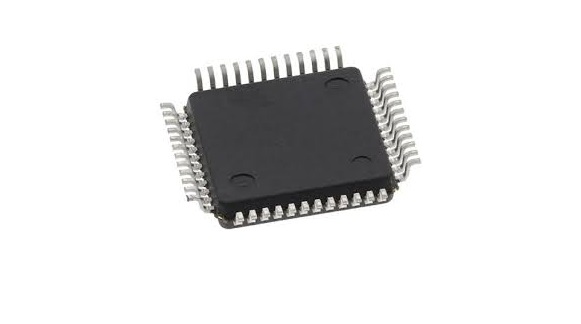

Renesas Electronics R5F104GLGFB#30, 16bit RL78 Microcontroller, 32MHz, 512 (Flash ROM) kB, 8 (Data Flash) kB Flash

R5F104GLGFB-30 Renesas Electronics R5F104GLGFB#30, 16bit RL78 Microcontroller, 32MHz, 512 (Flash ROM) kB, 8 (Data Flash) kB Flash
Renesas Electronics

Product Information

Dimensions:
7 x 7 x 1.7mm
Number of I2C Channels:
7
Number of USART Channels:
0
USB Channels:
0
Width:
7mm
Program Memory Size:
512 kB
RAM Size:
48 kB
Data Bus Width:
16bit
Instruction Set Architecture:
CISC
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
32MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+105 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
RL78/G14
Device Core:
RL78
Length:
7mm
Number of ADC Units:
1
Pin Count:
48
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.7mm
Typical Operating Supply Voltage:
1.6 → 5.5 V
ADCs:
10 x 8/10 bit
Number of CAN Channels:
0
Number of SPI Channels:
6
RoHs Compliant
Checking for live stock

This is 16bit RL78 Microcontroller 32MHz 512 (Flash ROM) kB 8 (Data Flash) kB Flash manufactured by Renesas Electronics. The manufacturer part number is R5F104GLGFB#30. The given dimensions of the product include 7 x 7 x 1.7mm. Moreover, it comprises 7 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 7mm wide. In addition, 512 kb is the program memory size. The product has typical 48 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 32mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +105 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family rl78/g14. On the other hand, the rl78 is the device core. Its accurate length is 7mm. It contains 1 ADC units. It contains 48 pins. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.7mm. It has 1.6 → 5.5 v of typical operating supply voltage. The ADCs included 10 x 8/10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 6 SPI channels.
