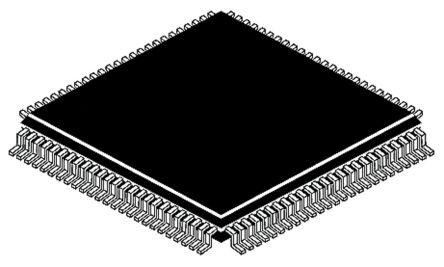

This is 32bit RXv2 CPU Microcontroller 120MHz 1 MB Flash 100-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F565N9BDFP#30. The given dimensions of the product include 14.1 x 14.1 x 1.55mm. Moreover, it comprises 3 I2C channels. It contains 0 USART channels. The product integrates 1 USB channels. Furthermore, the product is 14.1mm wide. In addition, 1 mb is the program memory size. Furthermore, it is composed of 0 PWM units. The product has typical 256 kb RAM size. Additionally, it is composed of 29 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 32bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 120mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Moreover, the product is created with 0 PMW resolution . Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family rx65n. On the other hand, the rxv2 cpu is the device core. The ADC has 12bit resolution. The timer has 8 bit, 16 bit, 32 bit resolution. Timers options include 1 (6 x 16 bit), 2 (4 x 4 bit), 9 (1 x 32 bit), 9 (8 x 16 bit). It contains 2 ADC units. It contains 100 pins. The product carries 0 of pulse width modulation. The product is available in surface mount configuration. It includes 0 PWM channels . Its accurate length is 14.1mm. It contains 0 dedicated ethernet channels . In addition, the height is 1.55mm. It has 3.6 (maximum) v of typical operating supply voltage. The ADCs included 2 (29 x 12 bit). Moreover, it consists of 2 CAN channels. Furthermore, it is composed of 3 SPI channels.
