Manufacturer : Microchip
Manufacturer Part No : PIC18LF8722-I/PT
Enrgtech Part No : ET16766924
Product Range : PolySwitch RXEF Series

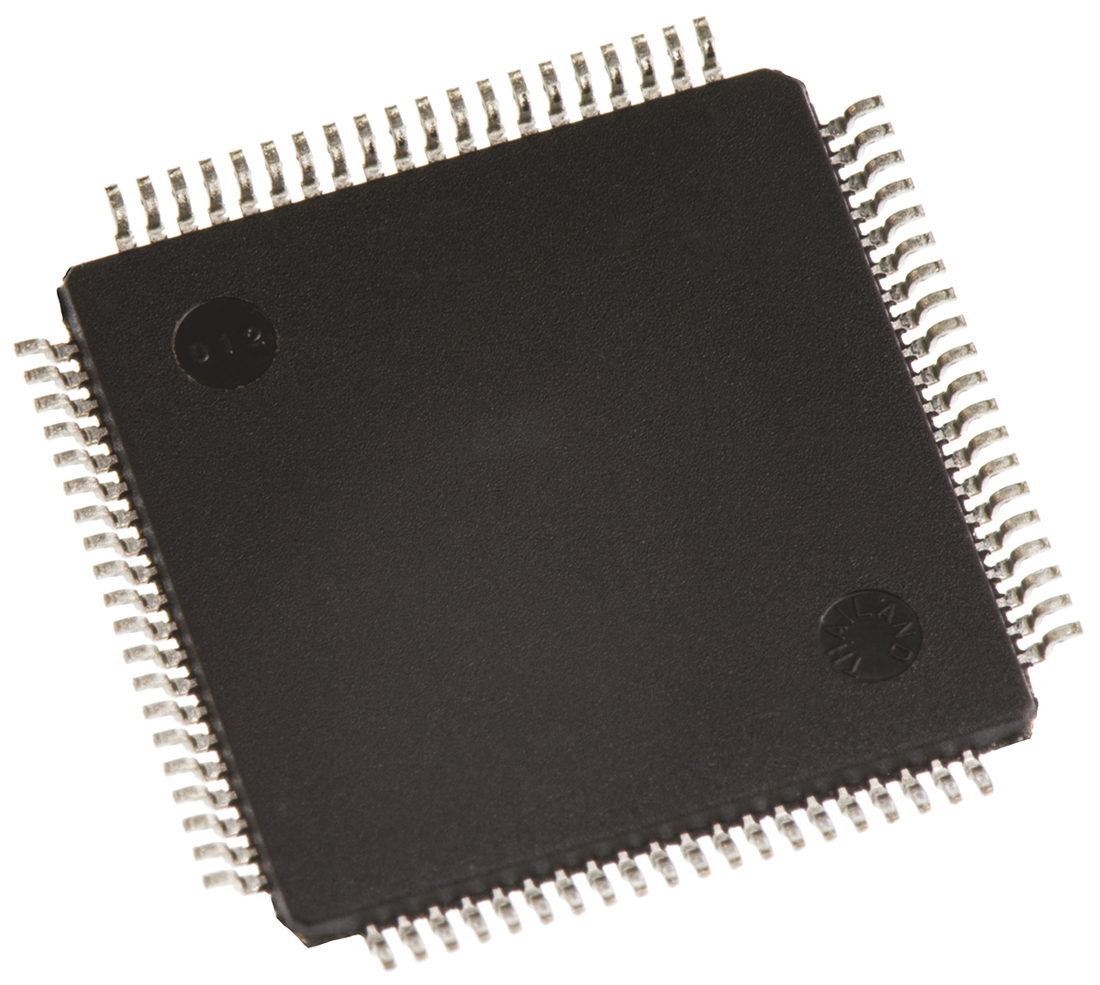

Microchip PIC18LF8722-I/PT, 8bit PIC Microcontroller, 40MHz, 1.024 kB, 128 kB Flash, 80-Pin TQFP

PIC18F8527/8622/8627/8722 8-Bit Microcontrollers The PIC18F Microcontrollers from Microchip are the most capable 8-bit devices within Microchip’s offer. Available within the range is CAN, LIN and Ethernet capability as part of a comprehensive range of peripherals to meet the needs of embedded applications and versions featuring XLP (Extreme Low-Power) Technology for where power consumption is a key consideration. The Microchip PIC18F8527/8622/8627/8722 family of Microcontrollers are 8-bit devices based upon Microchip’s PIC18 architecture and includes XLP (eXtreme Low Power) technology. Microcontroller Features C Compiler Optimized Architecture Self-Programmable under Software Control Priority Levels for Interrupts 8 x 8 Single-Cycle Hardware Multiplier In-Circuit Serial Programming™ (ICSP™) via Two Pins In-Circuit Debug (ICD) via Two Pins Wide Operating Voltage Range: 2.0V to 5.5V Programmable Brown-out Reset (BOR) with Software Enable Option Extended Watchdog Timer (WDT) Flexible Oscillator Structure Power Management Features Run: CPU On, Peripherals On Idle: CPU Off, Peripherals On Sleep: CPU Off, Peripherals Off Ultra Low 50 nA Input Leakage Run mode Currents Down to 25 μA Typical Idle mode Currents Down to 6.8 μA Typical Sleep mode Current Down to 120 nA Typical Timer1 Oscillator: 900 nA, 32 kHz, 2V Watchdog Timer: 1.6 μA, 2V Typical Two-Speed Oscillator Start-up Peripheral Features High-Current Sink/Source 25 mA/25 mA Three Programmable External Interrupts Four Input Change Interrupts Three Enhanced Capture/Compare/PWM (ECCP) modules Two Capture/Compare/PWM (CCP) modules Master Synchronous Serial Port (MSSP) module - supports 3-Wire SPI (all 4 modes) and I2C™ Enhanced Addressable USART module block (no external crystal required) 10-Bit Analogue-to-Digital Converter – 12 or 16 channels depending on model...
PIC18F8527/8622/8627/8722 8-Bit Microcontrollers The PIC18F Microcontrollers from Microchip are the most capable 8-bit devices within Microchip’s offer. Available within the range is CAN, LIN and Ethernet capability as part of a comprehensive range of peripherals to meet the needs of embedded applications and versions featuring XLP (Extreme Low-Power) Technology for where power consumption is a key consideration. The Microchip PIC18F8527/8622/8627/8722 family of Microcontrollers are 8-bit devices based upon Microchip’s PIC18 architecture and includes XLP (eXtreme Low Power) technology. Microcontroller Features C Compiler Optimized Architecture Self-Programmable under Software Control Priority Levels for Interrupts 8 x 8 Single-Cycle Hardware Multiplier In-Circuit Serial Programming™ (ICSP™) via Two Pins In-Circuit Debug (ICD) via Two Pins Wide Operating Voltage Range: 2.0V to 5.5V Programmable Brown-out Reset (BOR) with Software Enable Option Extended Watchdog Timer (WDT) Flexible Oscillator Structure Power Management Features Run: CPU On, Peripherals On Idle: CPU Off, Peripherals On Sleep: CPU Off, Peripherals Off Ultra Low 50 nA Input Leakage Run mode Currents Down to 25 μA Typical Idle mode Currents Down to 6.8 μA Typical Sleep mode Current Down to 120 nA Typical Timer1 Oscillator: 900 nA, 32 kHz, 2V Watchdog Timer: 1.6 μA, 2V Typical Two-Speed Oscillator Start-up Peripheral Features High-Current Sink/Source 25 mA/25 mA Three Programmable External Interrupts Four Input Change Interrupts Three Enhanced Capture/Compare/PWM (ECCP) modules Two Capture/Compare/PWM (CCP) modules Master Synchronous Serial Port (MSSP) module - supports 3-Wire SPI (all 4 modes) and I2C™ Enhanced Addressable USART module block (no external crystal required) 10-Bit Analogue-to-Digital Converter – 12 or 16 channels depending on model Dual Analogue Comparators with Input Multiplexing Programmable 16-Level High/Low-Voltage Detection (HLVD) module

Product Information

Dimensions : 12 x 12 x 1.05mm
Number of I2C Channels : 2
Number of USART Channels : 2
Width : 12mm
Program Memory Size : 1.024 kB, 128 kB
Number of PWM Units : 5
RAM Size : 3.936 kB
ADC Channels : 16
Number of Timers : 5
Data Bus Width : 8bit
Instruction Set Architecture : RISC
Program Memory Type : Flash
Package Type : TQFP
Maximum Frequency : 40MHz
Maximum Operating Temperature : +85 °C
rohs : RoHS Certificate of Compliance
Family Name : PIC18F
Device Core : PIC
ADC Resolution : 10bit
Timer Resolution : 8 bit, 16 bit
Timers : 2 x 8 bit, 3 x 16 bit
Number of ADC Units : 1
Pin Count : 80
Pulse Width Modulation : 2(CCP), 3(ECCP)
Mounting Type : Surface Mount
Length : 12mm
Height : 1.05mm
Typical Operating Supply Voltage : 2 → 5.5 V
ADCs : 16 x 10 bit
Minimum Operating Temperature : -40 °C
Number of SPI Channels : 2
