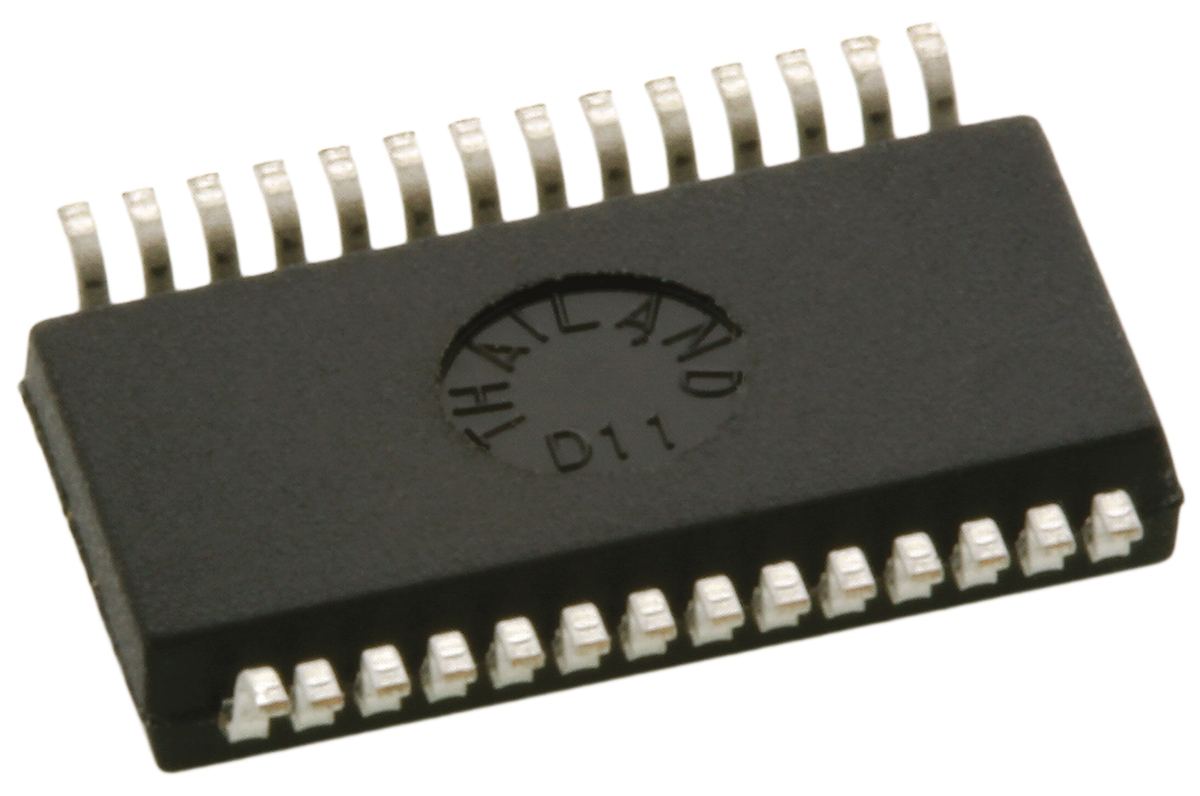

Microchip PIC18F26K80-I/SS, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 28-Pin SSOP

PIC18F26K80-I-SS Microchip PIC18F26K80-I/SS, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 28-Pin SSOP
PIC18F26K80-I/SS
Microchip

Product Information

Dimensions:
10.2 x 5.3 x 1.75mm
Number of I2C Channels:
1
Number of USART Channels:
2
Width:
5.3mm
Program Memory Size:
64 kB
Number of PWM Units:
2
RAM Size:
1.024 kB, 3.648 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
SSOP
Maximum Frequency:
64MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
PIC18F
Device Core:
PIC
Length:
10.2mm
Number of ADC Units:
1
Pin Count:
28
Pulse Width Modulation:
1 x 10 bit, 4 x 10 bit
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.75mm
Typical Operating Supply Voltage:
3.3 V
ADCs:
8 x 12 bit
Number of CAN Channels:
1
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 64MHz 64 kB Flash 28-Pin SSOP manufactured by Microchip. The manufacturer part number is PIC18F26K80-I/SS. The given dimensions of the product include 10.2 x 5.3 x 1.75mm. Moreover, it comprises 1 I2C channels. It contains 2 USART channels. Furthermore, the product is 5.3mm wide. In addition, 64 kb is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 1.024 kb, 3.648 kb RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of ssop. It features 64mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic18f. On the other hand, the pic is the device core. Its accurate length is 10.2mm. It contains 1 ADC units. It contains 28 pins. The product carries 1 x 10 bit, 4 x 10 bit of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.75mm. It has 3.3 v of typical operating supply voltage. The ADCs included 8 x 12 bit. Moreover, it consists of 1 CAN channels. Furthermore, it is composed of 1 SPI channels.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
