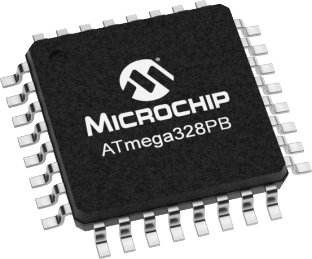

Microchip ATMEGA328PB-AU, 8bit 8 bit CPU Microcontroller, 20MHz, 32 kB Flash, 32-Pin TQFP

ATMEGA328PB-AU Microchip , 8bit 8 bit CPU Microcontroller, 20MHz, 32 kB Flash, 32-Pin TQFP
Microchip

Product Information

Dimensions:
7.1 x 7.1 x 1.05mm
Number of I2C Channels:
2
Number of USART Channels:
2
USB Channels:
0
Width:
7.1mm
Program Memory Size:
32 kB
Number of PWM Units:
1
RAM Size:
1 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
20MHz
Data Rate:
15kbit/s
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
ATmega
Device Core:
8 bit CPU
Length:
7.1mm
Number of ADC Units:
1
Pin Count:
32
Pulse Width Modulation:
1 (10 Channel)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.05mm
Typical Operating Supply Voltage:
1.8 → 5.5 V
ADCs:
8 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
2
RoHs Compliant
Checking for live stock

This is 8bit 8 bit CPU Microcontroller 20MHz 32 kB Flash 32-Pin TQFP manufactured by Microchip. The manufacturer part number is ATMEGA328PB-AU. The given dimensions of the product include 7.1 x 7.1 x 1.05mm. Moreover, it comprises 2 I2C channels. It contains 2 USART channels. The product integrates 0 USB channels. Furthermore, the product is 7.1mm wide. In addition, 32 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 1 kb RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of tqfp. It features 20mhz of maximum frequency. It has a maximised data speed rate of 15kbit/s. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family atmega. On the other hand, the 8 bit cpu is the device core. Its accurate length is 7.1mm. It contains 1 ADC units. It contains 32 pins. The product carries 1 (10 channel) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.05mm. It has 1.8 → 5.5 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 2 SPI channels.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
