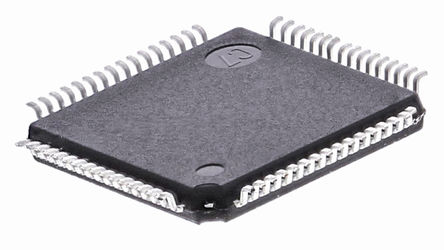

Microchip AT91SAM7S512B-AU, 32bit ARM7TDMI Microcontroller, 55MHz, 512 kB Flash, 64-Pin LQFP

AT91SAM7S512B-AU Microchip , 32bit ARM7TDMI Microcontroller, 55MHz, 512 kB Flash, 64-Pin LQFP
AT91SAM7S512B-AU
Microchip

Product Information

Dimensions:
10 x 10 x 1.45mm
Number of I2C Channels:
1
Number of USART Channels:
2
USB Channels:
1
Width:
10mm
Program Memory Size:
512 kB
Number of PWM Units:
1 x 16 bit
RAM Size:
64 kB
Data Bus Width:
32bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
LQFP
Maximum Frequency:
55MHz
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
AT91
Device Core:
ARM7TDMI
Length:
10mm
Number of ADC Units:
1
Pin Count:
64
Pulse Width Modulation:
1 (4 x 16 bit)
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.45mm
Typical Operating Supply Voltage:
3.3 V
ADCs:
8 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 32bit ARM7TDMI Microcontroller 55MHz 512 kB Flash 64-Pin LQFP manufactured by Microchip. The manufacturer part number is AT91SAM7S512B-AU. The given dimensions of the product include 10 x 10 x 1.45mm. Moreover, it comprises 1 I2C channels. It contains 2 USART channels. The product integrates 1 USB channels. Furthermore, the product is 10mm wide. In addition, 512 kb is the program memory size. Furthermore, it is composed of 1 x 16 bit PWM units. The product has typical 64 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of lqfp. It features 55mhz of maximum frequency. It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family at91. On the other hand, the arm7tdmi is the device core. Its accurate length is 10mm. It contains 1 ADC units. It contains 64 pins. The product carries 1 (4 x 16 bit) of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.45mm. It has 3.3 v of typical operating supply voltage. The ADCs included 8 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
