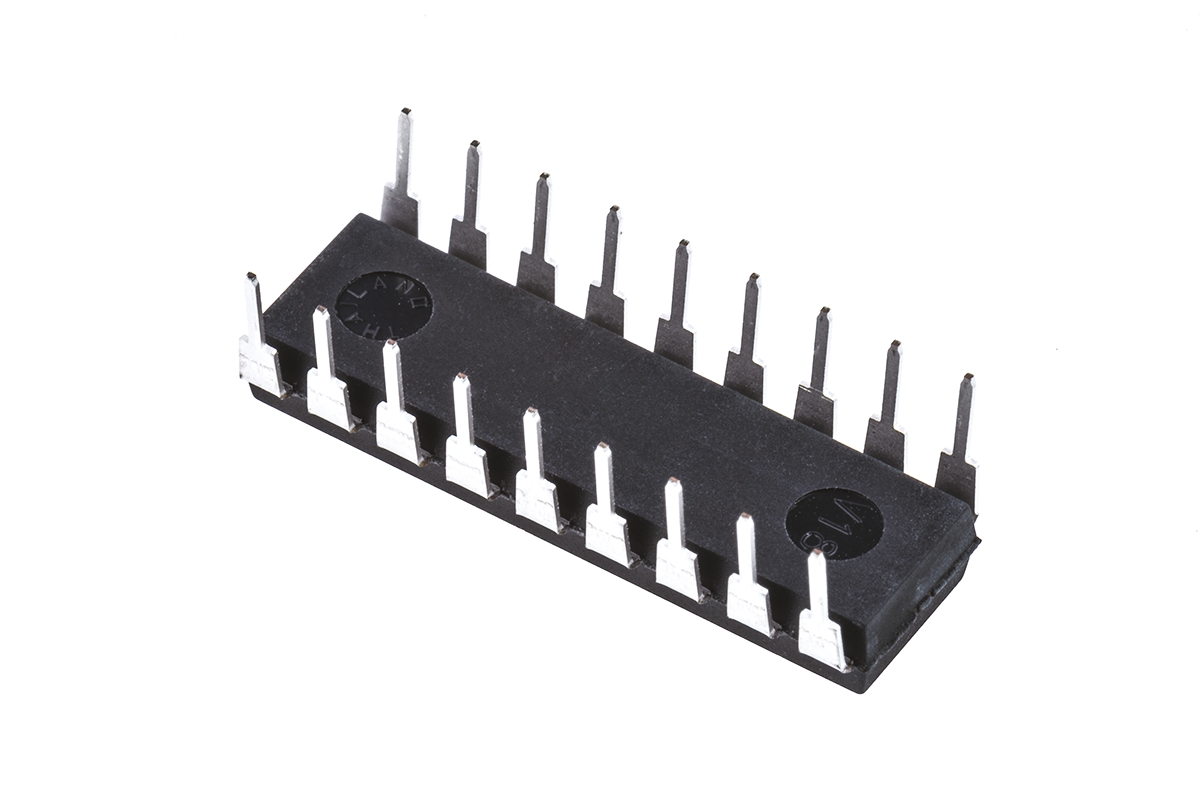

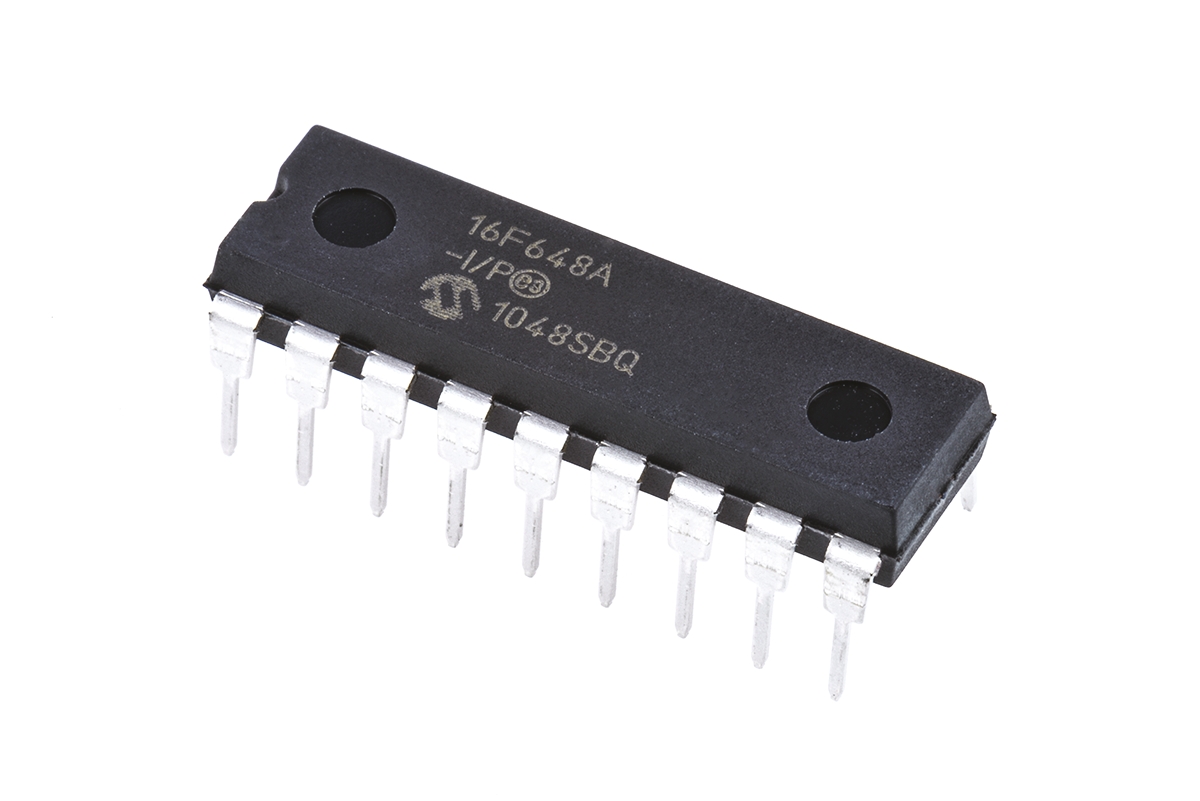

Microchip PIC16F648A-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 4096 x 14 words Flash, 18-Pin PDIP

PIC16F648A-I-P Microchip PIC16F648A-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 4096 x 14 words Flash, 18-Pin PDIP
PIC16F648A-I/P
PIC16F648A-I-P Microchip PIC16F648A-I/P, 8bit PIC Microcontroller, 20MHz, 256 B, 4096 x 14 words Flash, 18-Pin PDIP
Microchip

Product Information

Width:
7.11 mm
Program Memory Size:
7kB
Height:
4.95mm
Automotive Standard:
No
Number of Timers:
3
RAM Size:
224bit
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
FLASH
Minimum Supply Voltage:
2V
Package Type:
PDIP
Analogue Comparators:
2
Maximum Clock Frequency:
20MHz
Product Type:
Microcontroller
Maximum Operating Temperature:
85°C
Device Core:
PIC
Length:
23.37mm
Standards/Approvals:
No
Interface Type:
UART
Pin Count:
18
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
800mW
Number of Programmable I/Os:
16
Series:
PIC16F648A
Maximum Supply Voltage:
6V
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 20MHz 256 B 4096 x 14 words Flash 18-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F648A-I/P. Furthermore, the product is 7.11 mm wide. In addition, 7kb is the program memory size. In addition, the height is 4.95mm. The product complies with automotive standard - no. It comprises 3 timers. The product has typical 224bit RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. It has a minimum 2v supply voltage . The package is a sort of pdip. In addition, it has a maximum clock frequency about 20mhz . microcontroller is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 85°c. On the other hand, the pic is the device core. Its accurate length is 23.37mm. It is a type of uart interface. It contains 18 pins. It has a through hole type mount . The product pic16f648a, is a highly preferred choice for users. The product requires a maximum 6v supply voltage . Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
PIC16F627A/628A/648A FLASH-Based 8-Bit CMOS Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
