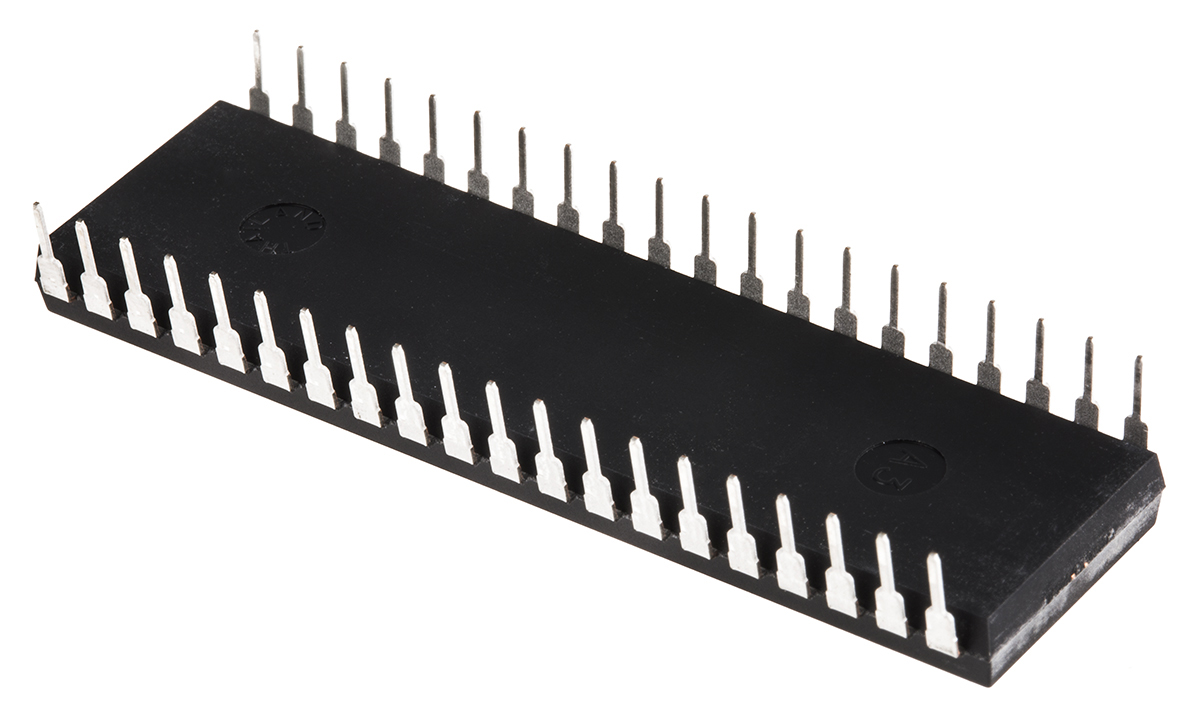

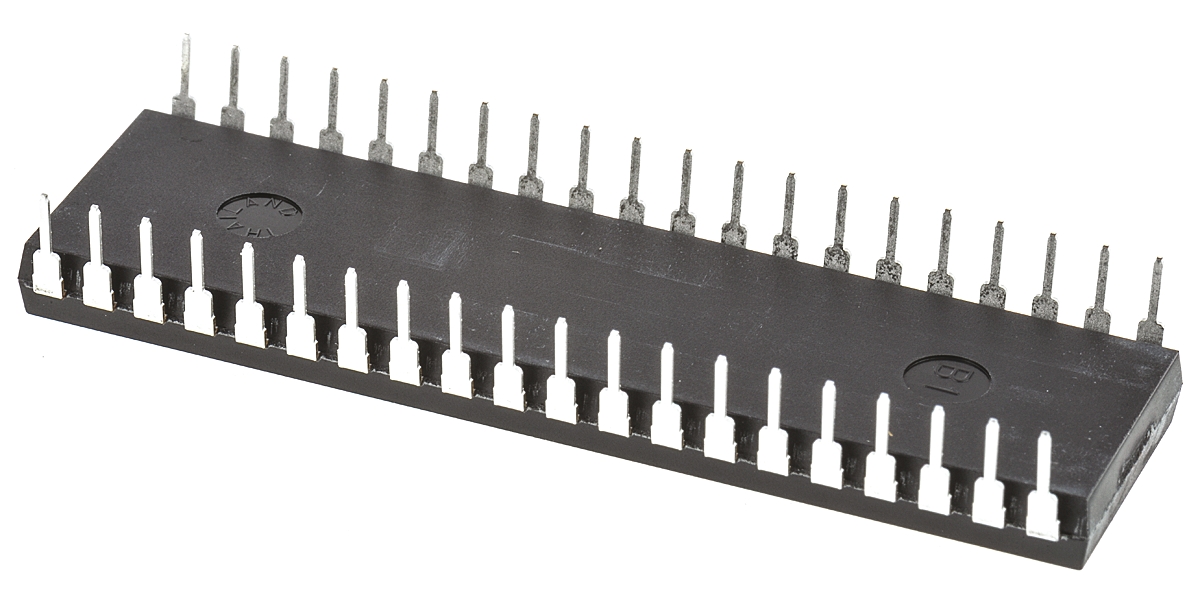

Microchip PIC18F4525-I/P, 8bit PIC Microcontroller, 40MHz, 1.024 kB, 48 kB Flash, 40-Pin PDIP

PIC18F4525-I-P Microchip PIC18F4525-I/P, 8bit PIC Microcontroller, 40MHz, 1.024 kB, 48 kB Flash, 40-Pin PDIP
PIC18F4525-I/P
Microchip

Product Information

Dimensions:
2.095 x 0.58 x 0.195in
Number of I2C Channels:
1
Number of USART Channels:
1
USB Channels:
0
Width:
0.58in
Program Memory Size:
1.024 kB, 48 kB
Number of PWM Units:
2
RAM Size:
3.986 kB
Data Bus Width:
8bit
Instruction Set Architecture:
RISC
Program Memory Type:
Flash
Package Type:
PDIP
Maximum Frequency:
40MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
0
Minimum Operating Temperature:
-40 °C
Family Name:
PIC18F
Device Core:
PIC
Length:
53.21mm
Number of ADC Units:
1
Pin Count:
40
Pulse Width Modulation:
1 (CCP), 1 (ECCP)
Mounting Type:
Through Hole
Number of Ethernet Channels:
0
Height:
4.95mm
Typical Operating Supply Voltage:
4.2 → 5.5 V
ADCs:
13 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is 8bit PIC Microcontroller 40MHz 1.024 kB 48 kB Flash 40-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC18F4525-I/P. The given dimensions of the product include 2.095 x 0.58 x 0.195in. Moreover, it comprises 1 I2C channels. It contains 1 USART channels. The product integrates 0 USB channels. Furthermore, the product is 0.58in wide. In addition, 1.024 kb, 48 kb is the program memory size. Furthermore, it is composed of 2 PWM units. The product has typical 3.986 kb RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 40mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. The product belongs to a family pic18f. On the other hand, the pic is the device core. Its accurate length is 53.21mm. It contains 1 ADC units. It contains 40 pins. The product carries 1 (ccp), 1 (eccp) of pulse width modulation. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 4.95mm. It has 4.2 → 5.5 v of typical operating supply voltage. The ADCs included 13 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 1 SPI channels.
