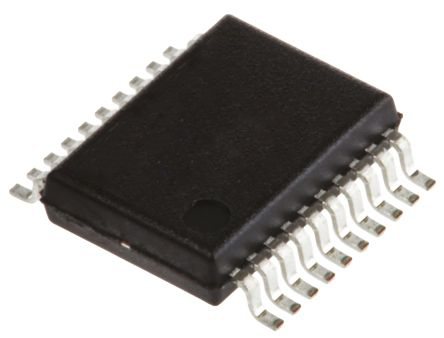

Renesas Electronics R5F21324CDSP#U0, 16bit R8C Microcontroller, 20MHz, 16 kB Flash, 20-Pin LSSOP
Product Information
Dimensions:
6.6 x 4.5 x 1.15mm
Number of I2C Channels:
2
Number of USART Channels:
0
USB Channels:
0
Width:
4.5mm
Program Memory Size:
16 kB
Number of PWM Units:
1
RAM Size:
1.5 kB
Data Bus Width:
16bit
Instruction Set Architecture:
CISC
Program Memory Type:
Flash
Package Type:
LSSOP
Maximum Frequency:
20MHz
Number of PCI Channels:
0
Number of LIN Channels:
1
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
2
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
0
Family Name:
R8C/32C
Device Core:
R8C
Length:
6.6mm
Number of ADC Units:
1
Pin Count:
20
Pulse Width Modulation:
1 (4 Channel) Timer RB, Timer RC
Mounting Type:
Surface Mount
Number of Ethernet Channels:
0
Height:
1.15mm
Typical Operating Supply Voltage:
2.7 → 5.5 V
ADCs:
4 x 10 bit
Number of CAN Channels:
0
Number of SPI Channels:
0
Checking for live stock
FAQs
Yes. You can also search R5F21324CDSP#U0 on website for other similar products.
We accept all major payment methods for all products including ET13981656. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F21324CDSP#U0 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F21324CDSP#U0, 16bit R8C Microcontroller, 20MHz, 16 kB Flash, 20-Pin LSSOP. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F21324CDSP#U0, 16bit R8C Microcontroller, 20MHz, 16 kB Flash, 20-Pin LSSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13981656 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13981656.
Yes. We ship R5F21324CDSP#U0 Internationally to many countries around the world.
This is 16bit R8C Microcontroller 20MHz 16 kB Flash 20-Pin LSSOP manufactured by Renesas Electronics. The manufacturer part number is R5F21324CDSP#U0. The given dimensions of the product include 6.6 x 4.5 x 1.15mm. Moreover, it comprises 2 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 4.5mm wide. In addition, 16 kb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 1.5 kb RAM size. Moreover, the data bus width includes 16bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lssop. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 1 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 2 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family r8c/32c. On the other hand, the r8c is the device core. Its accurate length is 6.6mm. It contains 1 ADC units. It contains 20 pins. The product carries 1 (4 channel) timer rb, timer rc of pulse width modulation. The product is available in surface mount configuration. It contains 0 dedicated ethernet channels . In addition, the height is 1.15mm. It has 2.7 → 5.5 v of typical operating supply voltage. The ADCs included 4 x 10 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 0 SPI channels.
