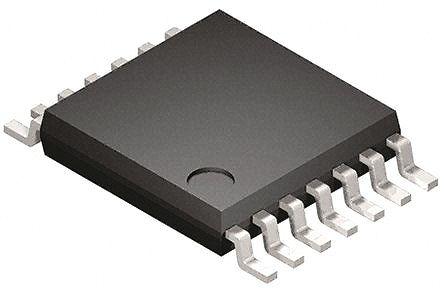

This is 8bit PIC Microcontroller 20MHz 2048 words Flash 14-Pin TSSOP manufactured by Microchip. The manufacturer part number is PIC16F616-E/ST. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. Furthermore, the product is 4.5mm wide. In addition, 2048 words is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 128 b RAM size. Additionally, it is composed of 8 ADC channels. It comprises 3 timers. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of tssop. It features 20mhz of maximum frequency. It has a maximum operating temperature of +125 °c. Moreover, the product is created with 8 bit, 10 bit PMW resolution . The product belongs to a family pic16f. On the other hand, the pic is the device core. The ADC has 10bit resolution. The timer has 8 bit, 16 bit resolution. Timers options include 1 x 16 bit, 2 x 8 bit. It contains 1 ADC units. It contains 14 pins. The product carries 1 x 10/8 bit of pulse width modulation. The product is available in surface mount configuration. Its accurate length is 5.1mm. In addition, the height is 1.05mm. It has 2 → 5.5 v of typical operating supply voltage. The ADCs included 1(8 x 10 bit). Whereas, the minimum operating temperature of the product is -40 °c.
For more information please check the datasheets.
