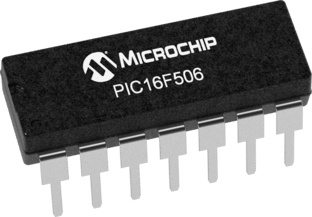

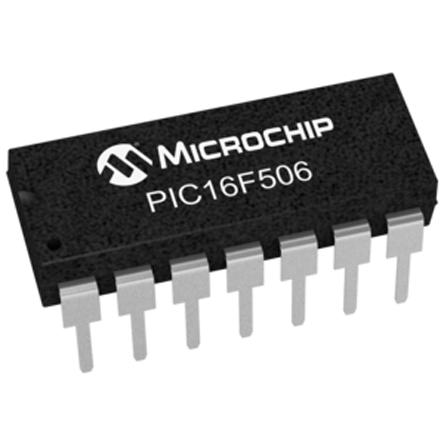

This is 8bit PIC Microcontroller 20MHz 1024 x 12 words Flash 14-Pin PDIP manufactured by Microchip. The manufacturer part number is PIC16F506-I/P. The given dimensions of the product include 0.775 x 0.28 x 0.195in. Moreover, it comprises 0 I2C channels. It contains 0 USART channels. The product integrates 0 USB channels. Furthermore, the product is 0.28in wide. In addition, 1024 words is the program memory size. The product has typical 67 b RAM size. Moreover, the data bus width includes 8bit. The instruction set has risc architecture. It is a flash program memory type. The package is a sort of pdip. It features 20mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 0 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 0 maximum ethernet channels . The product belongs to a family pic16f. On the other hand, the pic is the device core. Its accurate length is 19.69mm. It contains 1 ADC units. It contains 14 pins. The product is available in through hole configuration. It contains 0 dedicated ethernet channels . In addition, the height is 4.95mm. It has 2 → 5.5 v of typical operating supply voltage. The ADCs included 4 x 8 bit. Moreover, it consists of 0 CAN channels. Furthermore, it is composed of 0 SPI channels.
Datasheet(Technical Reference)
ESD Control Selection Guide V1(Technical Reference)
