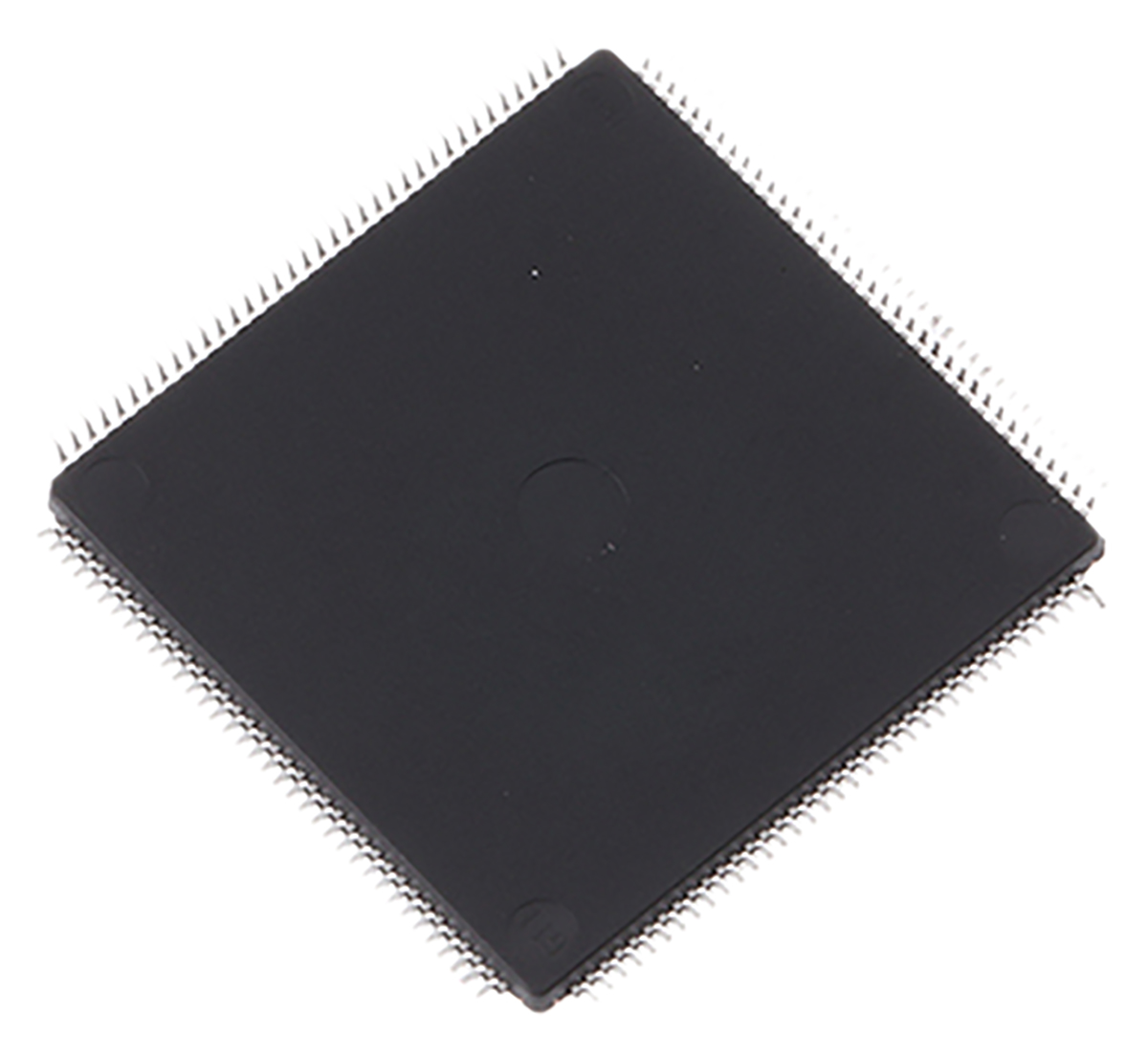

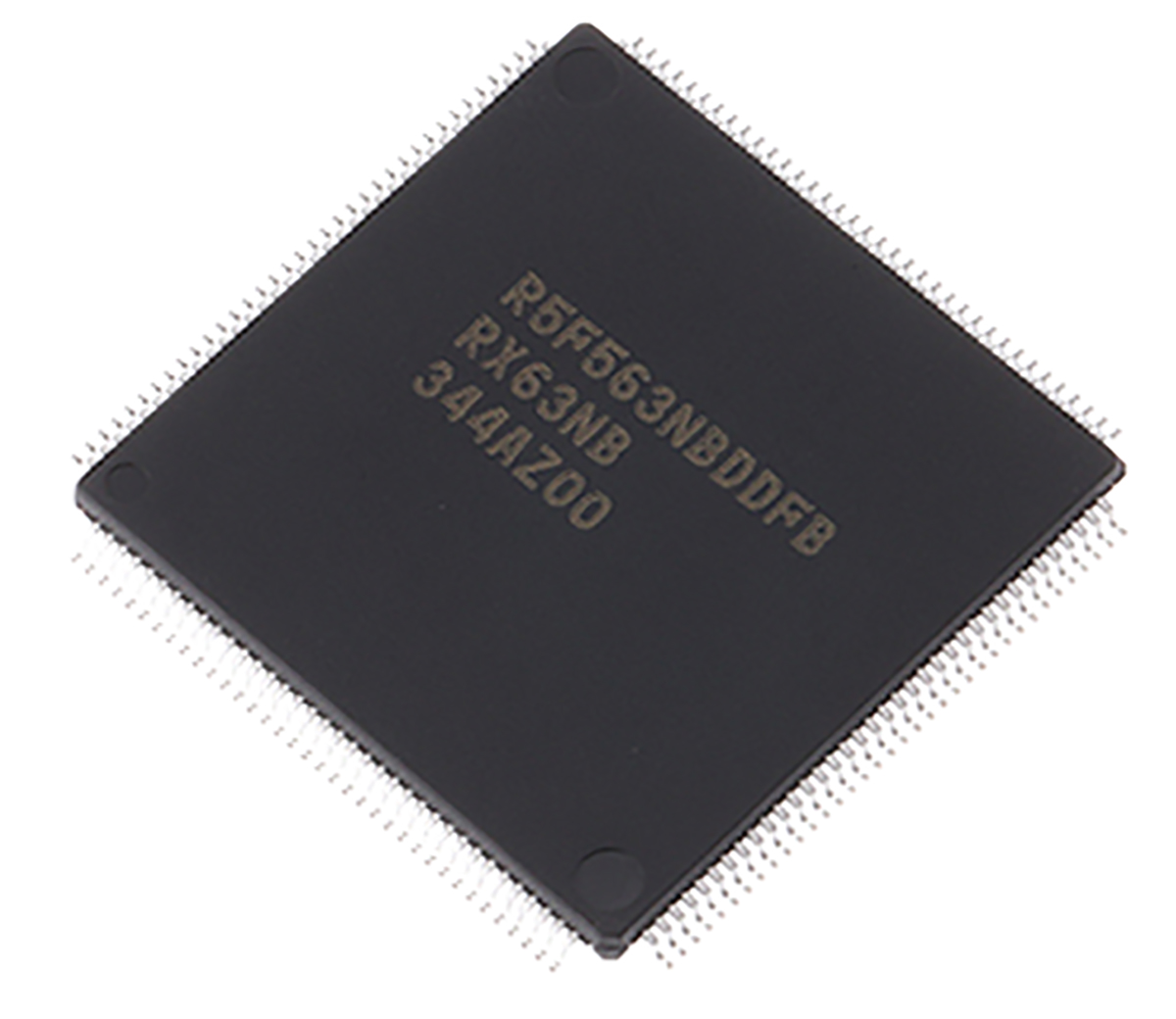

Renesas Electronics R5F563NBDDFB#V0, 32bit RX63N Microcontroller, 100MHz, 1 MB Flash, 144-Pin LFQFP
Product Information
Dimensions:
20.1 x 20.1 x 1.4mm
Number of I2C Channels:
4
Number of USART Channels:
0
USB Channels:
2
Width:
20.1mm
Program Memory Size:
1 MB
Number of PWM Units:
1
RAM Size:
128 kB
Data Bus Width:
32bit
Instruction Set Architecture:
CISC
Program Memory Type:
Flash
Package Type:
LFQFP
Maximum Frequency:
100MHz
Number of PCI Channels:
0
Number of LIN Channels:
0
Maximum Operating Temperature:
+85 °C
Number of UART Channels:
13
Minimum Operating Temperature:
-40 °C
Maximum Number of Ethernet Channels:
1
Family Name:
RX63N
Device Core:
RX
Length:
20.1mm
Number of ADC Units:
2
Pin Count:
144
Pulse Width Modulation:
1 (15 Channel) MTU2, 1 (15 Channel) TPU, 1 (4 Channel) TMR
Mounting Type:
Surface Mount
Number of Ethernet Channels:
1
Height:
1.4mm
Typical Operating Supply Voltage:
2.7 → 3.6 V
ADCs:
22 x 10/12 bit
Number of CAN Channels:
3
Number of SPI Channels:
3
Checking for live stock
FAQs
Yes. You can also search R5F563NBDDFB#V0 on website for other similar products.
We accept all major payment methods for all products including ET13824084. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with R5F563NBDDFB#V0 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microcontrollers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics R5F563NBDDFB#V0, 32bit RX63N Microcontroller, 100MHz, 1 MB Flash, 144-Pin LFQFP. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics R5F563NBDDFB#V0, 32bit RX63N Microcontroller, 100MHz, 1 MB Flash, 144-Pin LFQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13824084 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13824084.
Yes. We ship R5F563NBDDFB#V0 Internationally to many countries around the world.
This is 32bit RX63N Microcontroller 100MHz 1 MB Flash 144-Pin LFQFP manufactured by Renesas Electronics. The manufacturer part number is R5F563NBDDFB#V0. The given dimensions of the product include 20.1 x 20.1 x 1.4mm. Moreover, it comprises 4 I2C channels. It contains 0 USART channels. The product integrates 2 USB channels. Furthermore, the product is 20.1mm wide. In addition, 1 mb is the program memory size. Furthermore, it is composed of 1 PWM units. The product has typical 128 kb RAM size. Moreover, the data bus width includes 32bit. The instruction set has cisc architecture. It is a flash program memory type. The package is a sort of lfqfp. It features 100mhz of maximum frequency. It contains 0 PCI channel . It includes 0 dedicated LIN channels . It has a maximum operating temperature of +85 °c. It is also composed of 13 UART channels. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product includes 1 maximum ethernet channels . The product belongs to a family rx63n. On the other hand, the rx is the device core. Its accurate length is 20.1mm. It contains 2 ADC units. It contains 144 pins. The product carries 1 (15 channel) mtu2, 1 (15 channel) tpu, 1 (4 channel) tmr of pulse width modulation. The product is available in surface mount configuration. It contains 1 dedicated ethernet channels . In addition, the height is 1.4mm. It has 2.7 → 3.6 v of typical operating supply voltage. The ADCs included 22 x 10/12 bit. Moreover, it consists of 3 CAN channels. Furthermore, it is composed of 3 SPI channels.
