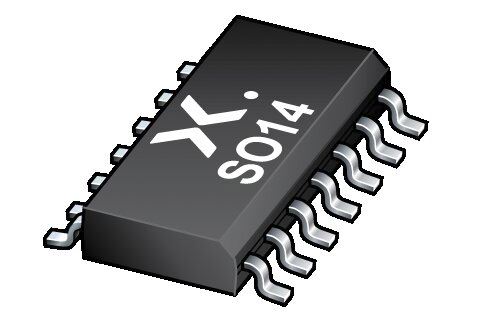

Nexperia 74LVC08AD,112, Quad 2-Input AND Logic Gates, 14-Pin SOIC
Product Information
Maximum Low Level Output Current:
24mA
Dimensions:
8.75 x 4 x 1.45mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
AND
Logic Family:
74LVC
Height:
1.45mm
Width:
4mm
Length:
8.75mm
Package Type:
SO
Propagation Delay Test Condition:
50pF
Input Type:
CMOS, TTL
Maximum Propagation Delay Time @ Maximum CL:
10.4 ns @ 50 pF
Maximum Operating Supply Voltage:
3.6 V
Number of Elements:
4
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Maximum High Level Output Current:
-24mA
Checking for live stock
FAQs
Yes. You can also search 74LVC08AD,112 on website for other similar products.
We accept all major payment methods for all products including ET17877683. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74LVC08AD,112 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Gates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia 74LVC08AD,112, Quad 2-Input AND Logic Gates, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Nexperia 74LVC08AD,112, Quad 2-Input AND Logic Gates, 14-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17877683 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17877683.
Yes. We ship 74LVC08AD,112 Internationally to many countries around the world.
This is Quad 2-Input AND Logic Gates 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74LVC08AD,112. On the other hand, it is featured with 24ma of max. low level output current. The given dimensions of the product include 8.75 x 4 x 1.45mm. The product is available in surface mount configuration. It contains 2 inputs per gate . While its minimum operating supply voltage is 1.65 v. Whereas, the minimum operating temperature of the product is -40 °c. The primary function of logic includes and. The logic family is 74lvc. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of so. Features 50pf of propagation delay test condition. It carries cmos, ttl input type. It provides up to 10.4 ns @ 50 pf maximum propagation delay time. It has 3.6 v maximum operating supply voltage. It carries 4 elements. It has a maximum operating temperature of +125 °c. It contains 14 pins. While a -24ma of maximum high level output current.
