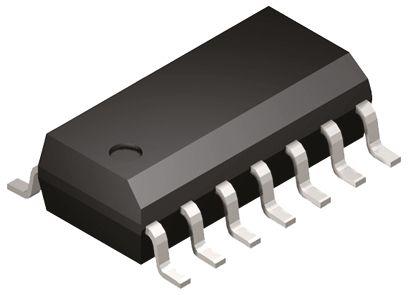

This is Quad 2-Input OR Logic Gate 4.5 → 5.5 V 14-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC74ACT32DG. The given dimensions of the product include 8.75 x 4 x 1.5mm. The logic family is act. Furthermore, the product is 4mm wide. It carries ttl input type. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 10 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 4.5 v. Furthermore, it has attl output. The package is a sort of soic. It has a maximum operating temperature of +85 °c. It contains 2 inputs per gate . Its accurate length is 8.75mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes or. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 4 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
