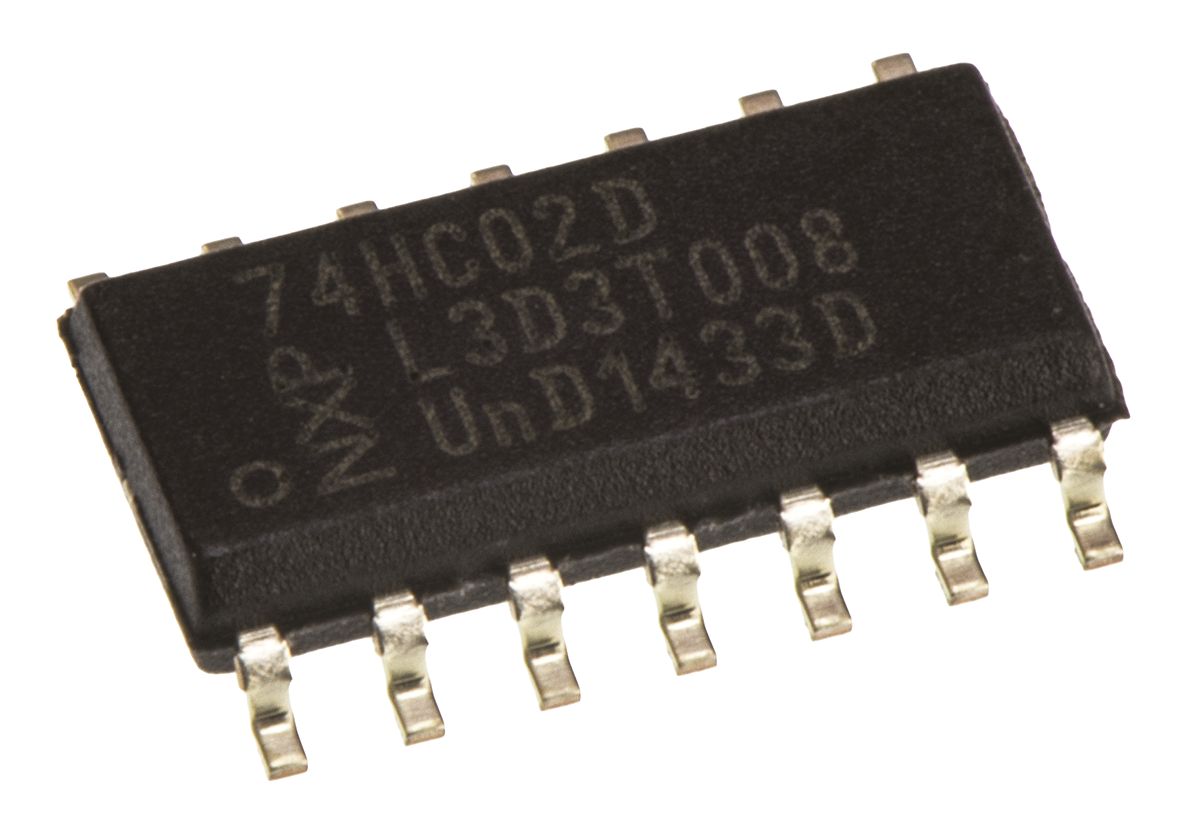

Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 2 → 6 V, 14-Pin SOIC
Product Information
Dimensions:
8.75 x 4 x 1.45mm
Logic Family:
HC
Width:
4mm
Input Type:
CMOS
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ Maximum CL:
15 ns @ 6 V, 18 ns @ 4.5 V, 90 ns @ 2 V
Minimum Operating Supply Voltage:
2 V
Package Type:
SOIC
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
8.75mm
Pin Count:
14
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
NOR
Height:
1.45mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74HC02D,652 on website for other similar products.
We accept all major payment methods for all products including ET16799173. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74HC02D,652 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Logic Gates category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 2 → 6 V, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Nexperia 74HC02D,652, Quad 2-Input NOR Logic Gate, 2 → 6 V, 14-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799173 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799173.
Yes. We ship 74HC02D,652 Internationally to many countries around the world.
This is Quad 2-Input NOR Logic Gate 2 → 6 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74HC02D,652. The given dimensions of the product include 8.75 x 4 x 1.45mm. The logic family is hc. Furthermore, the product is 4mm wide. It carries cmos input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -5.2ma of maximum high level output current. It provides up to 15 ns @ 6 v, 18 ns @ 4.5 v, 90 ns @ 2 v maximum propagation delay time. While its minimum operating supply voltage is 2 v. The package is a sort of soic. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 8.75mm. It contains 14 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes nor. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 4 elements. Features 50pf of propagation delay test condition.
