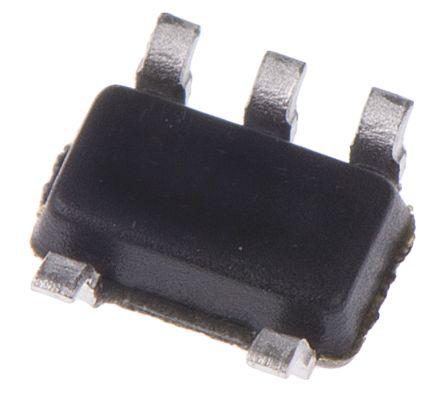

ON Semiconductor NC7S86M5X, 2-Input XOR Logic Gate, 5-Pin SOT-23
Product Information
Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2.6mA
Dimensions:
3 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Number of Inputs per Gate:
2
Minimum Operating Supply Voltage:
2 V
Logic Function:
XOR
Logic Family:
TinyLogic HS
Height:
1.3mm
Width:
1.7mm
Length:
3mm
Package Type:
SOT-23
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-40 °C
Maximum Propagation Delay Time @ Maximum CL:
17 ns @ 6 V, 20 ns @ 4.5 V, 27 ns @ 3 V, 100 ns @ 2 V
Schmitt Trigger Input:
No
Number of Elements:
1
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Maximum Operating Supply Voltage:
6 V
