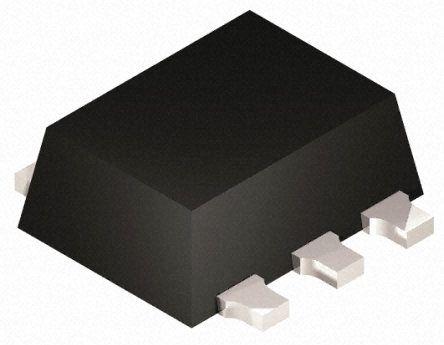

This is 2-Input AND Logic Gate 2 → 5.5 V 5-Pin SON manufactured by Toshiba. The manufacturer part number is TC7SH08FS(TPL3). On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. The product is available in surface mount configuration. It contains 2 inputs per gate . While its minimum operating supply voltage is 2 v. The primary function of logic includes and. The logic family is vhs. In addition, the height is 0.55mm. Furthermore, the product is 1.2mm wide. Its accurate length is 1.6mm. The package is a sort of son. Features 50pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. It provides up to 7.9 ns @ 5 v, 12.3 ns @ 3.3 v maximum propagation delay time. Schmitt Trigger Input - no. It carries 1 elements. It has a maximum operating temperature of +85 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
