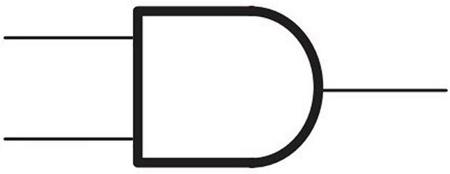

DiodesZetex 74LVC08AT14-13, Quad 2-Input AND Logic Gate, 1.65 → 5.5 V, 14-Pin TSSOP

Enrgtech Part No: ET13856193
|
Manufacturer Part No:
74LVC08AT14-13
|
Manufacturer: DiodesZetex

74LVC08AT14-13 DiodesZetex , Quad 2-Input AND Logic Gate, 1.65 → 5.5 V, 14-Pin TSSOP

Product Information

Logic Family:

LVC

Width:

4.5 mm

Input Type:

CMOS

Height:

1.05mm

Automotive Standard:

Maximum Low Level Output Current:

24mA

Maximum High Level Output Current:

-24mA

Output Type:

Push Pull

Minimum Supply Voltage:

1.65V

Package Type:

TSSOP

Product Type:

Logic Gate

Maximum Operating Temperature:

125°C

Checking for live stock

This is Quad 2-Input AND Logic Gate 1.65 → 5.5 V 14-Pin TSSOP manufactured by DiodesZetex. The manufacturer part number is 74LVC08AT14-13. The logic family is lvc. Furthermore, the product is 4.5 mm wide. It carries cmos input type. In addition, the height is 1.05mm. The product complies with automotive standard - no. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. Furthermore, it has apush pull output. It has a minimum 1.65v supply voltage . The package is a sort of tssop. logic gate is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It contains 2 inputs per gate . Its accurate length is 5.1mm. It contains 14 pins. It has a surface type mount . The primary function of logic includes and. The product requires a maximum 5.5v supply voltage . Whereas, the minimum operating temperature of the product is -40°c. Schmitt Trigger Input - no. It carries 4 elements.

Datasheet(Technical Reference)

74LVC08A, Quadruple 2-Input and Gates(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. We ship 74LVC08AT14-13 Internationally to many countries around the world.

Yes. You can also search 74LVC08AT14-13 on website for other similar products.

We accept all major payment methods for all products including ET13856193. Please check your shopping cart at the time of order.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13856193 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13856193.

You can order DiodesZetex brand products with 74LVC08AT14-13 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Logic Gates category are shipped in lowest possible time.

You will get a confirmation email regarding your order of DiodesZetex 74LVC08AT14-13, Quad 2-Input AND Logic Gate, 1.65 → 5.5 V, 14-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex 74LVC08AT14-13, Quad 2-Input AND Logic Gate, 1.65 → 5.5 V, 14-Pin TSSOP.
