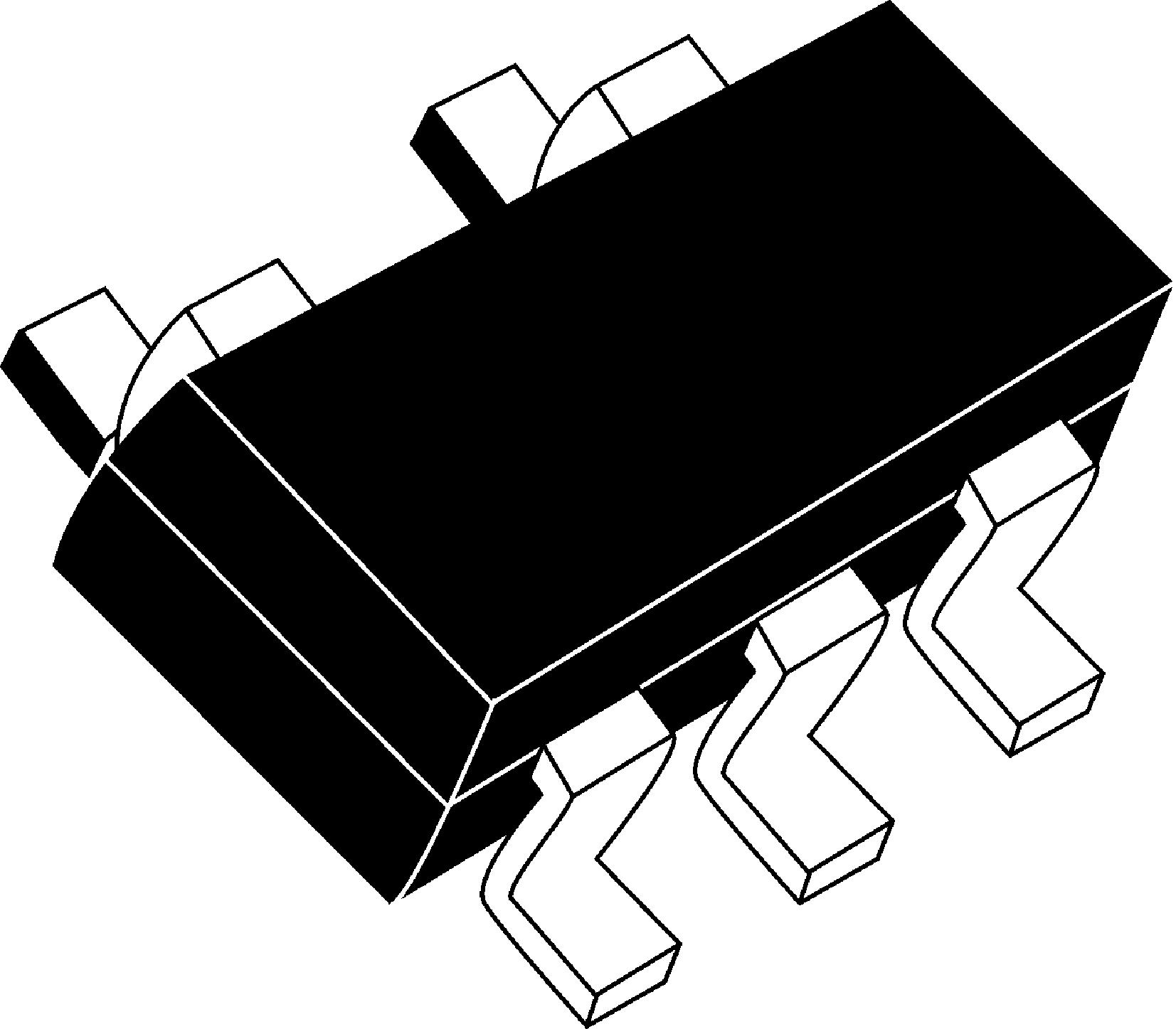

DiodesZetex 74LVC1G32W5-7, 2-Input OR Logic Gate, 1.65 → 5.5 V, 5-Pin SOT-25

74LVC1G32W5-7 DiodesZetex , 2-Input OR Logic Gate, 1.65 → 5.5 V, 5-Pin SOT-25
74LVC1G32W5-7
74LVC1G32W5-7 DiodesZetex , 2-Input OR Logic Gate, 1.65 → 5.5 V, 5-Pin SOT-25
DiodesZetex

Product Information

Logic Family:
LVC
Width:
1.7 mm
Input Type:
CMOS
Height:
1.3mm
Automotive Standard:
No
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Output Type:
Push Pull
Minimum Supply Voltage:
1.65V
Package Type:
SOT-25
Product Type:
Logic Gate
Maximum Operating Temperature:
125°C
Number of Inputs per Gate:
2
Length:
3.1mm
Standards/Approvals:
No
Pin Count:
5
Mount Type:
Surface
Maximum Propagation Delay Time @ CL:
5.5ns
Logic Function:
OR
Maximum Supply Voltage:
5.5V
Minimum Operating Temperature:
-40°C
Schmitt Trigger Input:
No
Number of Elements:
1
RoHs Compliant
Checking for live stock

This is 2-Input OR Logic Gate 1.65 → 5.5 V 5-Pin SOT-25 manufactured by DiodesZetex. The manufacturer part number is 74LVC1G32W5-7. The logic family is lvc. Furthermore, the product is 1.7 mm wide. It carries cmos input type. In addition, the height is 1.3mm. The product complies with automotive standard - no. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. Furthermore, it has apush pull output. It has a minimum 1.65v supply voltage . The package is a sort of sot-25. logic gate is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It contains 2 inputs per gate . Its accurate length is 3.1mm. It contains 5 pins. It has a surface type mount . The primary function of logic includes or. The product requires a maximum 5.5v supply voltage . Whereas, the minimum operating temperature of the product is -40°c. Schmitt Trigger Input - no. It carries 1 elements.

pdf icon
74lVc1g32 Single 2 Input PositiVe Or Gate(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
