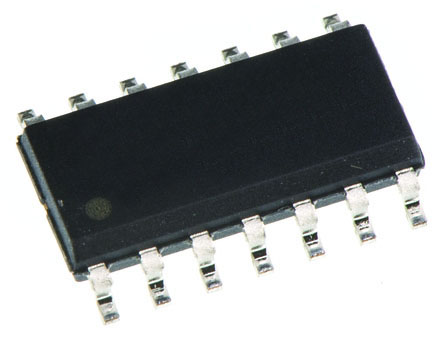

DiodesZetex 74HC32S14-13, Quad 2-Input OR Logic Gate, 2 → 6 V, 14-Pin SOIC

74HC32S14-13 DiodesZetex , Quad 2-Input OR Logic Gate, 2 → 6 V, 14-Pin SOIC
74HC32S14-13
DiodesZetex

Product Information

Dimensions:
8.74 x 3.99 x 1.48mm
Logic Family:
HC
Width:
3.99mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
135 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Push-Pull
Package Type:
SOIC
Maximum Operating Temperature:
+125 °C
Number of Inputs per Gate:
2
Length:
8.74mm
Pin Count:
14
Maximum Operating Supply Voltage:
6 V
Mounting Type:
Surface Mount
Logic Function:
OR
Height:
1.48mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Number of Elements:
4
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Quad 2-Input OR Logic Gate 2 → 6 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74HC32S14-13. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The logic family is hc. Furthermore, the product is 3.99mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -4ma of maximum high level output current. It provides up to 135 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has apush-pull output. The package is a sort of soic. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 8.74mm. It contains 14 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes or. In addition, the height is 1.48mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. It carries 4 elements. Features 50pf of propagation delay test condition.
