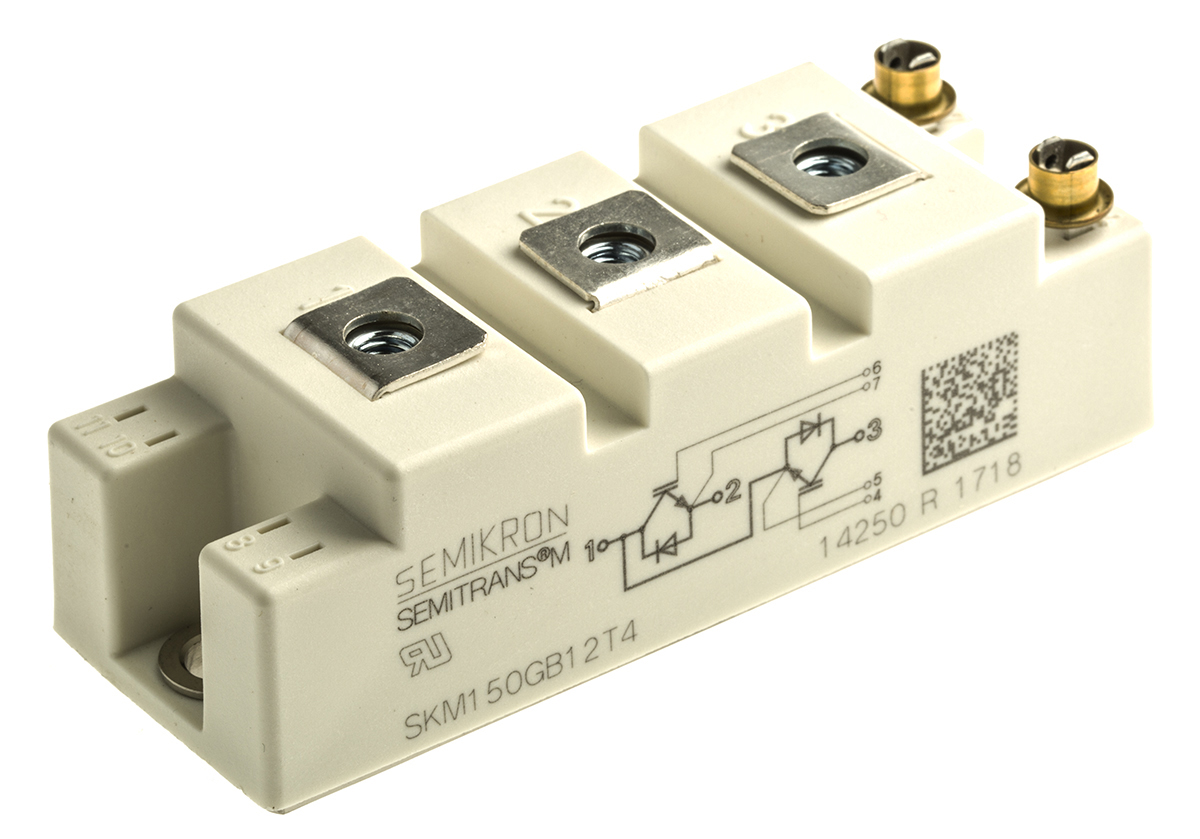

Semikron SKM150GB12T4, SEMITRANS2 Dual Half Bridge IGBT Module, 232 A max, 1200 V, Panel Mount

SKM150GB12T4 Semikron , SEMITRANS2 Dual Half Bridge IGBT Module, 232 A max, 1200 V, Panel Mount
SKM150GB12T4
Semikron

Product Information

Dimensions:
94 x 34 x 30.1mm
Mounting Type:
Panel Mount
Maximum Collector Emitter Voltage:
1200 V
Channel Type:
N
Maximum Continuous Collector Current:
232 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
SEMITRANS2
Minimum Operating Temperature:
-40 °C
Configuration:
Dual Half Bridge
Maximum Operating Temperature:
+175 °C
Pin Count:
7
Transistor Configuration:
Series
RoHs Compliant
Checking for live stock

This is SEMITRANS2 Dual Half Bridge IGBT Module 232 A max 1200 V Panel Mount manufactured by Semikron. The manufacturer part number is SKM150GB12T4. The given dimensions of the product include 94 x 34 x 30.1mm. The product is available in panel mount configuration. Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 232 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of semitrans2. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in dual half bridge configuration. It has a maximum operating temperature of +175 °c. It contains 7 pins. The product offers series transistor configuration.

pdf icon
Semikron Driver Selection Guide(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
IGBT halfbridge module 150A 1200V(Technical Reference)
