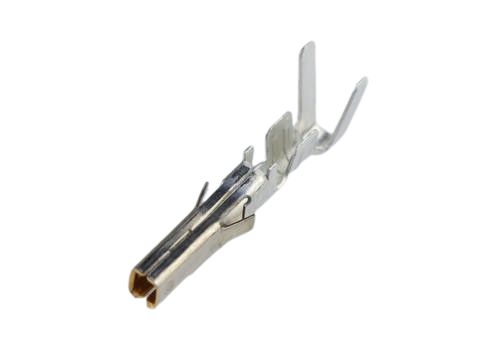

Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating

39-00-0183 Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating
39-00-0183 Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Gold over Nickel Plating
Molex

Product Information

Termination Type:
Crimp
Maximum Contact Resistance:
10mΩ
Gender:
Female
Minimum Wire Size AWG:
28 AWG
Current:
9A
Standards/Approvals:
No
Contact Plating:
Gold
Series:
Mini-Fit
For Use With:
Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr
Maximum Wire Size AWG:
22 AWG
Product Type:
Crimp Terminal
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is MINI-FIT 5556 Series Number Crimp Terminal Female 28AWG to 22AWG Gold over Nickel Plating manufactured by Molex. The manufacturer part number is 39-00-0183. The product is designed with a crimp termination. Additionally, it has a maximum 10mω contact resistance . In addition, female is the available "Gender" of the product. While the minimum wire size AWG includes 28 awg. Features a 9a current in A. The high-quality gold is used as contact plating material. The product mini-fit, is a highly preferred choice for users. The product is highly suitable for mini-fit tpa and mini-fit bmi connector housings, mini-fit jr. Its maximum wires size includes 22 awg. crimp terminal is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 105°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy phosphor bronze materials.

pdf icon
Datasheet_39-00-0183(Technical Reference)
pdf icon
Application Specification - 5556 and 5558 Series(Technical Reference)
pdf icon
Line Drawing - 5556 Series(Technical Reference)
