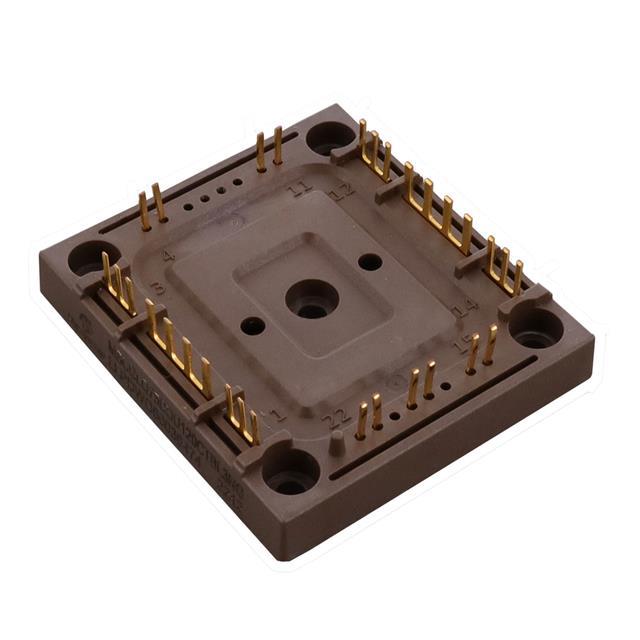

Microchip Technology MSCGLQ75DDU120CTBL3NG
Product Information
Current - Collector (Ic) (Max):
160 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.4V @ 15V, 75A
Voltage - Collector Emitter Breakdown (Max):
1200 V
Operating Temperature:
-55°C ~ 175°C (TJ)
Input Capacitance (Cies) @ Vce:
4.4 nF @ 25 V
Package / Case:
Module
Input:
Standard
NTC Thermistor:
Yes
REACH Status:
REACH Unaffected
Configuration:
Full Bridge
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
IGBT Type:
-
Current - Collector Cutoff (Max):
50 µA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
-
Power - Max:
470 W
Base Product Number:
MSCGLQ
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MSCGLQ75DDU120CTBL3NG on website for other similar products.
We accept all major payment methods for all products including ET23243297. Please check your shopping cart at the time of order.
You can order Microchip Technology brand products with MSCGLQ75DDU120CTBL3NG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBT Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip Technology MSCGLQ75DDU120CTBL3NG. You can also check on our website or by contacting our customer support team for further order details on Microchip Technology MSCGLQ75DDU120CTBL3NG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23243297 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip Technology" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23243297.
Yes. We ship MSCGLQ75DDU120CTBL3NG Internationally to many countries around the world.
This is manufactured by Microchip Technology. The manufacturer part number is MSCGLQ75DDU120CTBL3NG. The maximum collector current includes 160 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.4v @ 15v, 75a. The maximum collector emitter breakdown voltage of the product is 1200 v. The product has -55°c ~ 175°c (tj) operating temperature range. It holds 4.4 nf @ 25 v of input capacitance. Moreover, the product comes in module. Its input values include standard. NTC Thermistor - yes. In addition, it is reach unaffected. The product is available in full bridge configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). In addition, 50 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. The maximum power of the product is 470 w. Moreover, it corresponds to mscglq, a base product number of the product. The product is designated with the ear99 code number.
